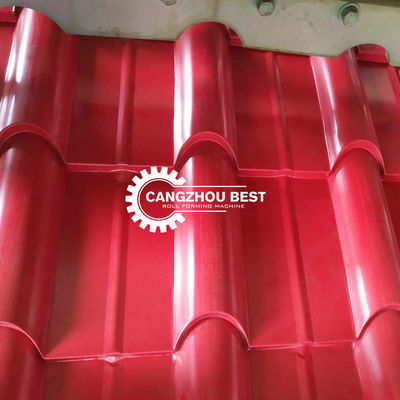

Color Steel Q Roof Tile Roll Forming Machine , Iron Sheet Making Machine

Color Steel Q Roof Tile Roll Forming Machine , Iron Sheet Making Machine
Color Steel Q Roof Tile Roll Forming Machine , Iron Sheet Making Machine Color Steel Q Roof Tile Roll Forming Machine , Iron Sheet Making Machine Color Steel Q Roof Tile Roll Forming Machine , Iron Sheet Making Machine Color Steel Q Roof Tile Roll Forming Machine , Iron Sheet Making Machine

Large Image :  Color Steel Q Roof Tile Roll Forming Machine , Iron Sheet Making Machine

Product Details:
Place of Origin: HEBEI CHAIN
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: CB800
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD12500
Packaging Details: naked
Delivery Time: 35days
Supply Ability: 15sets/month

Color Steel Q Roof Tile Roll Forming Machine , Iron Sheet Making Machine

Description
Name: Color Steel Q Tile Roof Sheet Roll Forming Machine In Africa Market Control System: PLC
Machine Speed: 8-12m/min Shaft Diameter: 70mm
Shaft Material: 45#steel Roller Material: 45#steel
High Light:

roof panel roll forming machine

,

steel roof tile forming machine

Color Steel Q Tile Roof Sheet Roll Forming Machine in Africa Market



Working flow:

Decoiler------feeding------roll forming------pressing----cut to length-----output table



Machine components list:



Name NO. Unit
1.De-coiler 2 set
2.Forming machine 1 set
3.Pressing and Cutting device 1 set
4.PLC control box 1 set
5.Hydraulic pump station 1 set
6.Production support table 1 set



Main technical parameter:



1. DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs


2. ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8 mm PPGI and GI

(2) NO. of roller Stations:up 9groups

Down11groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

(5) Diameter of shaft: 70mm

(6) Frame panel thickness:14mm

(7) Bottom frame: 36# H-section steel
(8) Motor Power: 3kw

(9)Driven type:0.6"Chain


3. PRESSING&CUT-OFF DEVICE

(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3kW

(5)Pressing die material:Cr12 steel after treament

4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta

(3) Encoder Brand: Omron

(4)Length Error: ±2mm

(5)Language: English and Chinese

(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)



5. HYDRAULIC PUMP STATION

(1) Motor power: 3 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand

PLC Oil pump



6. PRODUCTION SUPPORT TABLE

(1) No power type
(2)Length: 2m



Spare parts

Chain x 1, bearings x1, limit switch x1



Working conditions
1.working size 20m x 5m x 4m
2.Power supply 6kw
3.Frequency 50-60HZ
4.Wires/cables 4-6mm²(length according to workshop)
5. Labor cost 2 workers
6. Tools Spanners and screwdriver
7.Lift device 3-5t forklift or crane



Installation

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



Our Advantage



1. We are a factory with nearly 20 years experiences on Roll Forming Machines;
2. We have our own research and development team with strong ability to solve all kinds of problems;
3. We have stable raw material suppliers to ensure the best quality and on time supplying with low cost;
4. We have more than 20 technicians that can go abroad for the after-sale service;

5. We have more than 100 kinds and models products for your choice, you can find the most kind of

roll forming machines from us;

6. We have Laser Cutting Machine, CNC Machining Center, Polishing Line, Painting Line, etc. advanced

production equipments to ensure the quality of each part and the best appearance of our machines;

7. Our machines have reached the International Inspection Standards;
8. We have got the ISO9001:2008 Certificate and CE Certificate;
9. We are always waiting to serve you 7 days a week and 24 hours a day.
