Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Condition: | New |
|---|---|---|---|
| Tile Type: | Colored Glaze Steel | Use: | Roof |
| Certification: | CE/ISO9001 | Warranty: | 2 Year |
| High Light: | panel roll forming machine,cold roll forming machine |
||

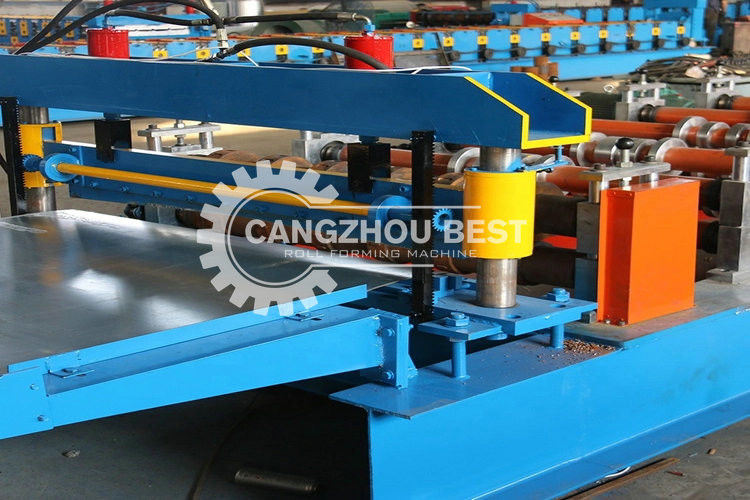

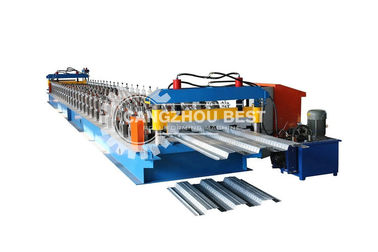

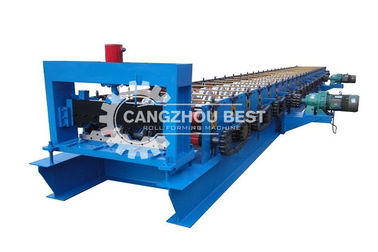

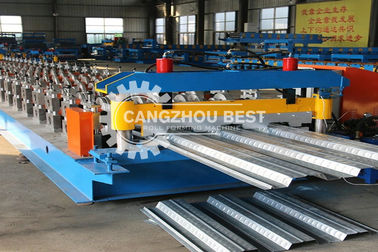

Galvanized Metal Floor Decking Sheet Roll Forming Machine Building Material Machine
new quality Steel sheet floor tile making machine, Steel Metal Decking Tile Sheet Roll Forming Making Machine Price
| No. | Floor tile making machine | ||
| 1 | raw material | suitable material | colored steel coil, galvanized coil, aluminum coil |
| feeding width | 1000mm | ||
| effective width | 720mm | ||
| thickness | 8-1.2mm | ||
| PS: the feeding&effective width can be any according to your need. | |||
| 2 | rollers | material | Gcr15 |
| rows | 25 rows | ||
| 3 | shafts | material | 45#steel, solid ones |
| diameter | Φ90mm and 120mm | ||
| 4 | cutting blade | hydraulic cutting, Cr12 Mov | |
| 5 | capacity | 15-20m/min, can be faster as your need. | |
| 6 | weight | 13Tons | |
| 7 | control system | PLC control system with inverter inside to assure the working precision within 1mm | |
| 8 | dimension | 11500*1600*1550mm | |
| 9 | machine base | 400mm H beam | |
| 10 | middle plate | 20mm | |
| 11 | chains | double1.2 inch | |
| PS: the above are for reference, we can design according to your requirement | |||
| Spec of Components | ||
Manual uncoiler |
||
| Usage | It is used to support the steel coil and uncoil it in a turnable way.The steel coil is uncoiled by hand. |  |
| Loading capacity | 5T | |
| Inner diameter | 450-508mm | |
Main roll forming part |
||
Material of the rollers |
45# steel,rollers surfaces polishing, hard plating. | |
| The polished surface and the heart treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped | ||
Hydraulic system |
||
| Power | up to final design | |
| Hydraulic oil | 46# hydraulic oil | |
| Color | blue (or as your customer's need) | |
Computer control cabinet |
||
| Programmable setting of propile length and quality,computed mode has two modes | automatic and manual one | |
| Language | English Chinese Spanish and Russian The system is easy to operate and use. |
|
Cutting device |
||
| Material of the cutting | Cr12,quenching treatment | |
| It can decide panel dimension according to the hydraulic drive and PLC computer control system | ||
Receiving table |
||
| Main framework adopts welded steel and supported roller,used for transmit and collect the finished products | |
|
