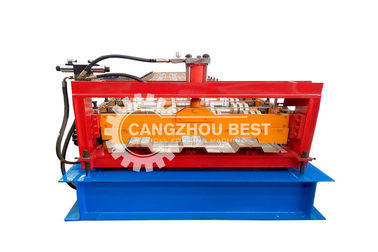

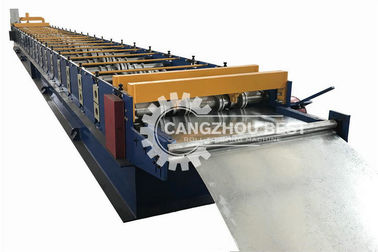

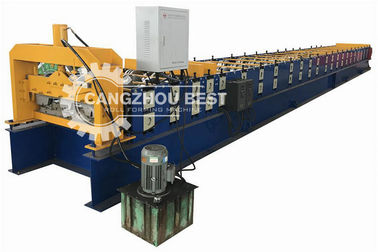

Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Condition: | New |
|---|---|---|---|
| Certification: | CE/ISO9001 | Warranty: | 2 Year |
| Control System: | PLC(imported Brand) | Raw Material Thickness: | 0.8-1.5 Mm |
| High Light: | panel roll forming machine,cold roll forming machine |
||
Size: 11000mm×1550mm×1510mm
Total Weight: about 6000KG
Main Motor Power: 18.5KW
Working Speed: 8-10m/min
Material of rollers: 45# steel, quenched HRC 58-62
Material of roller shafts:45# steel, adjusted
Material of cutting blade: Cr12 steel, 1 MOV
Controlling system: PLC
Step of rollers: 20-24 steps
Feeding Width: 1250mm
Effective Width: 1000mm
Electric Standard: 380V, 50Hz, 3Phase
Transmission: Gear & Sprocket
Main Frame: I-Beam
Hydraulic Pump Motor: 5.5KW
Steel Thickness: 0.7-1.3mm
Pitch Height: 35mm
Collecting Table: 2 units
Uncoiler: 5-8T
| No. | Item | Specification | |
| 1 | Steel coil | Width |
Max 1250/1220/1219/1000/914mm |
| Material | Ppgi/gi/gl/Alu-zinc | ||
| Thickness |
0.21-0.29mm 0.3-0.6mm 0.3-0.8mm |
||
| Hardness | Normal hardness/G550/HRB90 | ||
| 2 | Forming | Frame | 300-450mm Height |
| Stations |
As design of drawing Main: 9-18 stations |
||
| Rollers |
High grade No 45# steel with hard 0.05mm chromed |
||
| Shaft | High grade No 45# steel | ||
| Diameter of shaft |
As design of drawing Main: 70-80mm |

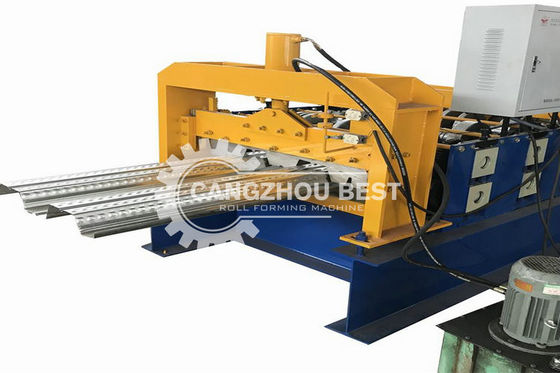

||
| Chain | Main: 1-1.5inch | ||
| 3 | Control | PLC control | China/Taiwan/Japan/Germany brand |
| Main motor | Main: 3-11kw | ||
| Language | English or as your request | ||
| 4 | Cutting | Cutter | High grade Cr12 steel |
| Cutting system | Hydraulic | ||
| Hydraulic pump | Main: 3-7.5kw | ||
| Cutter frame | Steel plate welding | ||
| 5 | Decoiler | Manual | 5 Tons |
| 6 | Product | Receiving table | Manual |
|
We can also talk and confirm other details before ordering. We can give you suggestions.
|
|||
product specification
|
Total length of equipment |
5.1m (depend on design) |
Width |
1.5m (depend on design) |
height |
1.5m (depend on design) |
| Motor Power | 3Kw+3Kw | Operating Voltage | 380V | ||
| Production speed | 8 - 10 m / min | ||||
| Transfer method | Chain drive | ||||
| Machine forming shaft | 840 machines 11 rows, 900 machines 9 rows. Large frame: 250H steel, vertical plate 12mm | ||||
| Adjust the set | Using 45 # steel seamless steel pipe finishing | ||||
| Wheel material | 45 # steel hard chrome plated | ||||
| Shaft material | 45 # steel shaft diameter: 65mm solid shaft | ||||
|
Forming part |
Divided into Seiko wheel rotation molding, forming effect is good, reduce the wheel and the friction between the raw materials, debugging convenient, fast. | ||||
| Numerical control system |
PLC panel, KEL-320 displa |
||||
| Counter | The use of domestic photoelectric rotary encoder, A40S6-600-2-12-ACP | ||||
| Cut | 3Kw pumping station, shear pressure type equipment | ||||
| Pressure plate thickness | 0.3—0.8mm | ||||
| Random attachments |
The use of a manual, a gift rack |
||||
| Warranty period | 12 months | ||||
