Product Details:
|
| Tile Type: | Colored Glaze Steel | Voltage: | 380V 50Hz 3phases |
|---|---|---|---|
| Condition: | New | Use: | Roofing |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Control System: | PLC(imported Brand) |
| High Light: | panel roll forming machine,cold roll forming machine |
||
| No. | Item | Specification | |
| 1 | Steel coil | Width |
Max 1250/1220/1219/1000/914mm |
| Material | Ppgi/gi/gl/Alu-zinc | ||
| Thickness |
0.21-0.29mm 0.3-0.6mm 0.3-0.8mm |
||
| Hardness | Normal hardness/G550/HRB90 | ||
| 2 | Forming | Frame | 300-450mm Height |
| Stations |
As design of drawing Main: 9-18 stations |
||
| Rollers |
High grade No 45# steel with hard 0.05mm chromed |
||
| Shaft | High grade No 45# steel | ||
| Diameter of shaft |
As design of drawing Main: 70-80mm |
||
| Chain | Main: 1-1.5inch | ||
| 3 | Control | PLC control | China/Taiwan/Japan/Germany brand |
| Main motor | Main: 3-11kw | ||
| Language | English or as your request | ||
| 4 | Cutting | Cutter | High grade Cr12 steel |
| Cutting system | Hydraulic | ||
| Hydraulic pump | Main: 3-7.5kw | ||
| Cutter frame | Steel plate welding | ||
| 5 | Decoiler | Manual | 5 Tons |
| 6 | Product | Receiving table | Manual |
|
We can also talk and confirm other details before ordering. We can give you suggestions.
Choose us, own professional service. |
|||

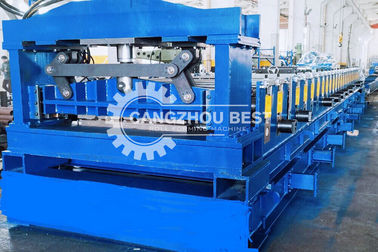

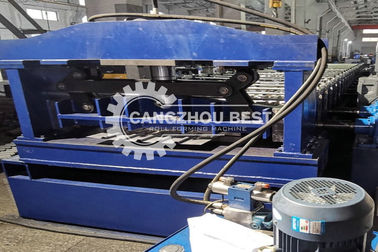

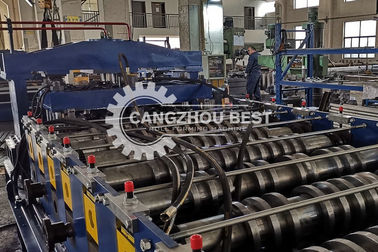

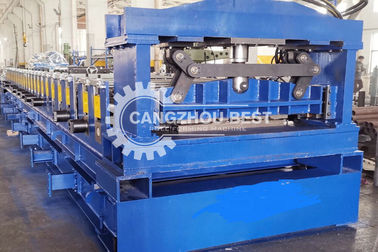

Tile Galvanized Sheet Metal Roofing Used Steel Decking Floor Tile Making Machine Price
Technical Parameters:
|
NO
|
Item
|
Description
|
|
1
|
Product' sizes
|
According to customer's request
|
|
2
|
Processing material
|
stainless
|
|
3
|
Processing thickness
|
1.0-2.5mm
|
|
4
|
22Main motor power
|
22kw
|
|
5
|
Power of hydraulic station
|
11kw
|
|
6
|
Quantity of roller stations
|
19
|
|
7
|
Production speed
|
Approximate 15-25 m/min
|
|
8
|
Diameter of shafts
|
Φ140mm
|
|
9
|
Material of rollers
|
Cr12 steel with vacuum heat treatment HRC57°-60°
|
|
10
|
Material of shafts
|
45# steel quenched and tempered
|
|
11
|
Material of cutting blades
|
Cr12 mould steel with quenched treatment
|
|
12
|
Size of machine
|
Approximate 12000mm(L)×160mm(W)×1500mm(H)
|
|
13
|
Theoretical weight
|
Approximate 7000KGS
|
|
14
|
Driven method
|
gearbox
|
|
15
|
Brand of PLC
|
Yaskawa
|
|
16
|
Cut mode
|
Hydraulic profile cutting
|
|
17
|
Power supply
|
415V 50HZ 3Phases or at buyer's requirement
|
|
Cable tray roll forming machine
|
Ridge Tile Forming Machine
|
|
guardrail roll forming amchine
|
Metal Roofing Roll Forming Machine
|
|
Floor Deck Roll Forming Machine
|
Double Layer Roofing Tile Roll Forming Machine
|
|
Door frame roll forming machine
|
peach post roll forming machine
|
|
Bending Machine
|
C/Z/U purlin roll forming machine
|
|
silo roll forming machine
|
down pipe roll forming machine
|
1. Design: architecture, Interior decoration, structural and landscape design.
2. Manufacture: roof truss, external & internal wall stud, floor deck, staircase, etc.
3. Customization: we can manufacture different machines to fit various requirements from different customers .
* Inquiry and consulting support.
* Sample testing support.
* if you have any inquiry can be send it's the details for us
we will send the quotation for you
* if you have any questions you can feel free to contact us
we are 24 hours online and answer you soon
* IF you have enough time we can invit you visit our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
We supply one year guarantee for the machine. The parts of the roll forming machine are free to send you and
you will pay the cost of freight. And you can aslo solve it if you ordered more parts for your rol forming machine
We supply all life tech support of our roll forming machines, Any questions, you can contact me by whatsapp.:+0086 188 6154 8510
( I suggest that whatsapp or wechat is good. Because i can get your words timely) Important thing, you can write mail to me.
