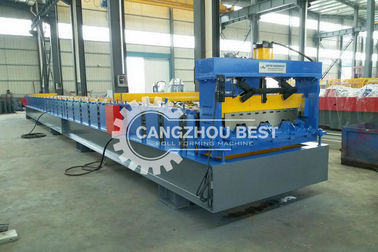

Metal Corrugated Floor Deck Roll Forming Machine For Rolling Steel Structural Building Material

Metal Corrugated Floor Deck Roll Forming Machine For Rolling Steel Structural Building Material
Metal Corrugated Floor Deck Roll Forming Machine For Rolling Steel Structural Building Material Metal Corrugated Floor Deck Roll Forming Machine For Rolling Steel Structural Building Material Metal Corrugated Floor Deck Roll Forming Machine For Rolling Steel Structural Building Material Metal Corrugated Floor Deck Roll Forming Machine For Rolling Steel Structural Building Material

Large Image :  Metal Corrugated Floor Deck Roll Forming Machine For Rolling Steel Structural Building Material

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD14000-28000
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets/month

Metal Corrugated Floor Deck Roll Forming Machine For Rolling Steel Structural Building Material

Description
Material: PPGI Raw Material: Steel Coil
Roller Material: 45# Steel Power(W): 5.5+4KW
Warranty: 2 Years Use:: Floor
Voltage: 380V 50Hz Control System: PLC ( Panasonic)
Thickness: 0.3-1.2mm Production Capacity: 8-15m/min
High Light:

panel roll forming machine

,

cold roll forming machine

Metal Corrugated Floor Deck Roll Former Production line for Rolling Steel Structural Building Material

Main feature



The deck sheets produced by this deck floor roll fomring machine has high strength with big wave. It adheres well to concrete. It is used on high buildings. It not only saves steel mold plate, but also saves investment. The deck floor panels are used for high building surface panels, it has so many good advantages, such as high wave, high strongness, high atuomation, low cost.


Working flow


Uncoiling — Feeding and Guiding — Roll forming — Cutting — Output table

Technical parameters



(1) 5T Manual Un-coiler

  • Width of feeding: 1250mm
  • Capability: 5 Ton
  • Inter diameter: 500-590mm
  • Maximal out diameter: 1500mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual
  • Color: blue

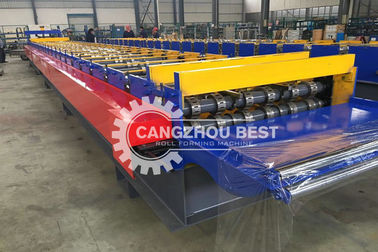

(2) Main Roll Forming Machine

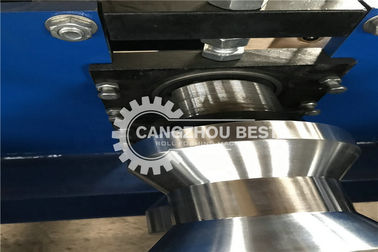

  • Roller material: 45# Steel chrome plated surface with hardness
  • Shaft diameter: 85mm material: 45# Steel
  • Chain: 1.0 inch double chain
  • All the driven parts will covered with protective cover



(3) Machine Structure

  • Main frame by 350H beam welding
  • Machine structure: wall board panel

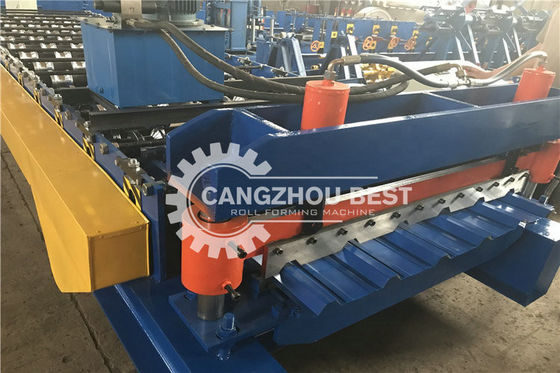

(4) Hydraulic Cutting System



  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,5.5KW
  • Working pressure: 16Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(5) Computer Control Cabinet



  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Voltage, Frequency, Phase: 380V, 50 Hz, 3Phase
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • Control panel: Button-type switch and touch screen
  • Unit of length: millimeter
  • PLC brand: Panasonic
  • Transducer: Yaskawa
  • Touch screen: MCGS



(6) Hydraulic System

  • Hydraulic power: 5.5kw
  • Working pressure: 16Mpa adjustable
  • Solenoid valve: 1 group
  • Hydraulic oil: 46# hydraulic oil
  • Quantity: 1



Competitive Advantage


1. operations safety
2. nice appearance, high quality
3. reasonable price
4. CE certification
5. High strength

Working Flow



Decoiling---Sheet Guilding---Rollforming---Sheet Cutting---Finished Floor Deck Sheets on Tables



Technical Specifications



No. item Parameters (all is up to our final design)
1 Suitable raw material Type Galvanized & galvalume steel strip coil, GI, GL
Yield strength 235MPa (or other high strength steel)
Thickness(mm) 0.8-1.2
width(mm) According to final design
2 Uncoiler's capacity 5 tons or 10 tons
3 Roll Former Working speed(m/min) About 6 meters/min
4 Main motor power(KW) 11kw x 2
5 Hydraulic power(KW) 5.5kw
6 Forming roller groups Around 33 groups
7 Raw material of corrugating roller High quality No.45 steel coated with hard chrome
8 Raw material of cutting blades Cr12 mould steel with quenching treatment
9 control system Mitsubishi PLC & converter and touching screen
10 Suitable industrial voltage 220V/380V/415/440V
11 Machine dimensions (L*W*H) 16 x 1.6 x 1.6 meters
12 Machine weight About 16 tons




FAQ



1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to produce.

2.Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.

3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.

4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.

5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.



6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.

7.How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.

8.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.


9.Can we arrange shipment?

Yes, sure, we can arrange shipment for our customers and provide door-to-door service.
