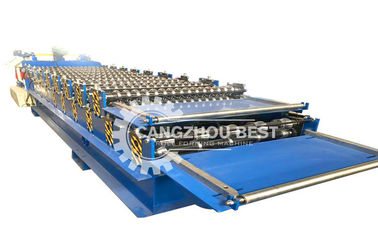

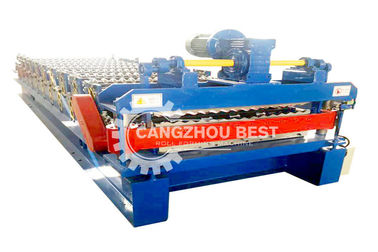

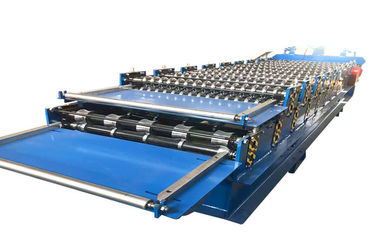

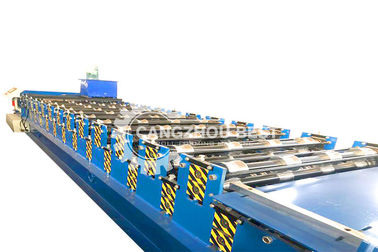

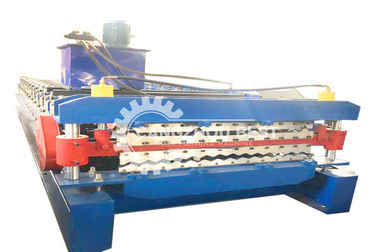

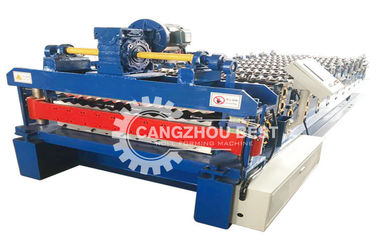

Metal Floor Deck Roll Forming Machine With Hydraulic Steel Cutting And Electric Rolling Machine

Metal Floor Deck Roll Forming Machine With Hydraulic Steel Cutting And Electric Rolling Machine
Metal Floor Deck Roll Forming Machine With Hydraulic Steel Cutting And Electric Rolling Machine Metal Floor Deck Roll Forming Machine With Hydraulic Steel Cutting And Electric Rolling Machine Metal Floor Deck Roll Forming Machine With Hydraulic Steel Cutting And Electric Rolling Machine Metal Floor Deck Roll Forming Machine With Hydraulic Steel Cutting And Electric Rolling Machine Metal Floor Deck Roll Forming Machine With Hydraulic Steel Cutting And Electric Rolling Machine Metal Floor Deck Roll Forming Machine With Hydraulic Steel Cutting And Electric Rolling Machine

Large Image :  Metal Floor Deck Roll Forming Machine With Hydraulic Steel Cutting And Electric Rolling Machine

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD14000-28000
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets/month
Contact Now

Metal Floor Deck Roll Forming Machine With Hydraulic Steel Cutting And Electric Rolling Machine

Description
Tile Type: Colored Glaze Steel Voltage: 380V 50Hz 3phases
Condition: New Weight: 6T Roof Sheet Roll Forming Machine
Use: Roof After-sales Service Provided: After-sales Service Provided
High Light:

panel roll forming machine

,

cold roll forming machine

Metal Floor Decking Panel Cold Rollforming Production Line with Hydraulic Steel Cutting and Electric Rolling Machine



Technical Specifications



Technical Items Details
Raw Material Type Steel Coils, Galvanised, Galvalume steel strips
Width It is up to the floor deck profile design
Thickness 0.8-1.2 mm
Yield Strength 235-345 MPa or specially designed for 550 MPa
Finished Rack Sheets Sizes It is up to the floor decking sheet profile designs
Length Adjustable
Motor Power Voltage 220V/380V/415V/440V
Driving Motor 11 KW x 2
Cutting Motor 5.5 KW
Production Speed of Roll Former around 10-15 meters per minute
Decoiler Type Manual or Electric Auto
Capacity 3 tons or 5 tons
Rollforming Stations around 33 sets
Rolling Shaft Diameter 82 mm
Rollers Material No. 45 coated with chrome
Punching Die Cr12 mould steel
Cutting Type With Post-cutting Device
Electric Control System Mitsubishi PLC, transducer and touching screen
Supporting Tables 2 sets
Main Machine Size Around 16 x 1.6 x 1.6 meters
Equipment Weight Around 16 tons



Working Process



Uncoiling---Sheet Guilding---Roll Forming---Cutting---Finished Floor Decks on Tables



Advantages of Our Metal Floor Decking Panels Manufacturing Machine



  • High quality anti-rust roller: CNC machine processed, No. 45 steel coated with chrome for more than 10 years long lifespan
  • Heating treatment: it is processed for the cutting frame to release the steel stress to avoid deformation and the hardness can reach to 60 degree.
  • Stronger driving system: bigger inch chains,or gear box driving system.
  • High precision: shafts for rollers are processed by grinding machine. Rollers are CNC processed to ensure the precision performance.
  • Cutter blade: Cr12 mould steel with quenching treatment for long lifespan.
  • Automatic PLC: Mitsubishi PLC, touch screen, inverter from Japan
  • Excellent after services: Technician can be sent to customers' factory for installation and training; 24 hours feedback and 7 days spare parts delivery.



Terms of Sales





Packing Standard Packing for shipping: Equipment without packaging, but provide necessary transportation protection and rain proof measures.
Warranty two years
After-sale service

1. we will provide training and site installation guidance in the earlier stage until you can correctly operate and install our products.

2. The installation technicians (normally 2 people) shall install and debug the equipment. The purchaser should pay the round-trip ticket fees, accommodation and vise expense.

3. During the debugging period (from the day leave to the day back to China) the purchaser should pay the technician USD50 per day.



Advantages of Our Galvanized Steel Floor Deck Roll Forming Line



  • High quality anti-rust roller: CNC machine processed, No.45 steel coated with chrome for more than 10 years long lifespan
  • Special Heating treatment: it is processed for the cutting frame to release the steel stress to avoid deformation and the hardness can reach to 60 degree.
  • Stronger driving system: bigger inch chains,or gear box driving system.
  • High precision: shafts for rollers are processeded by grinding machine. Rollers are CNC processed to ensure the precision performance.
  • Cutter blade material: Cr12 mould steel with quenching treatment for long lifespan.
  • Automatic PLC: Mitsubishi PLC, touch screen ,inverter from Japan
  • Excellent after services: Technician can be sent to customers' factory for installation and training; 24 hours feedback and 7 days spare parts delivery.
  • Metal Floor Deck Roll Forming Machine With Hydraulic Steel Cutting And Electric Rolling Machine 0Metal Floor Deck Roll Forming Machine With Hydraulic Steel Cutting And Electric Rolling Machine 1Metal Floor Deck Roll Forming Machine With Hydraulic Steel Cutting And Electric Rolling Machine 2
