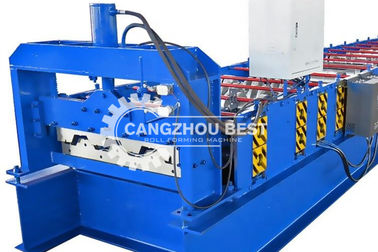

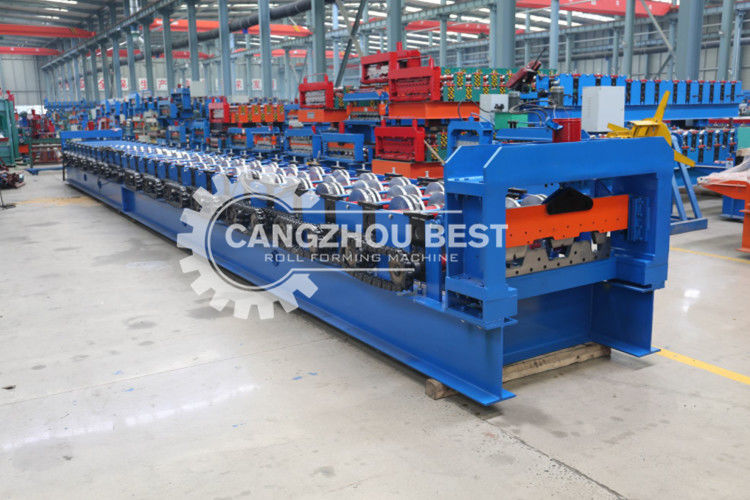

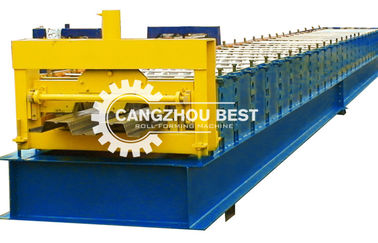

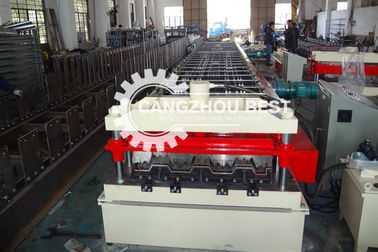

Steel Deck Floor Roll Forming Machine With Hydraulic Cutting Device

Steel Deck Floor Roll Forming Machine With Hydraulic Cutting Device
Steel Deck Floor Roll Forming Machine With Hydraulic Cutting Device
Steel Deck Floor Roll Forming Machine With Hydraulic Cutting Device Steel Deck Floor Roll Forming Machine With Hydraulic Cutting Device Steel Deck Floor Roll Forming Machine With Hydraulic Cutting Device Steel Deck Floor Roll Forming Machine With Hydraulic Cutting Device Steel Deck Floor Roll Forming Machine With Hydraulic Cutting Device

Large Image :  Steel Deck Floor Roll Forming Machine With Hydraulic Cutting Device

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY51-342-1025
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD+8000+SET
Packaging Details: plastic film for naked machine
Delivery Time: 40-50 days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets/month

Steel Deck Floor Roll Forming Machine With Hydraulic Cutting Device

Description
Product Name: Steel Decking Floor Machinery For Roll Forming Machine Hydraulic Cutting Device Machine Speed: 8-12m/min
Machine Dimention: 11.5mx1.4mx1.4m Driven System: Chain Or Gear Box
Control System: PLC Life Time: More Than 10 Years
High Light:

panel roll forming machine

,

cold roll forming machine

Steel Decking Floor Machinery For Roll Forming Machine Hydraulic Cutting Device



Hot Sale Metal decking floor sheet profile cold roll Forming machine is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling, continuous rolling and cold-forming, automatically cut to the size and specification which is required, and output the finished panels. The equipment adopts PLC control, AC frequency and adjusting the speed technology,and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.


Machine components


No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Hydraulic Cutting Device 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Output table 1 Set




Decoiler


Type Manual type(standard) Hydraulic type(option)
Width 1250mm 1500mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ508-610mm φ508-610mm
Outer diameter φ1500mm φ1800mm

roll forming


Material specification Galvanized and pre-painted galvanized steel.
Thickness 0.6 mm to 1.5mm.
Main motor power 5.5 kw.
Hydraulic station power 3 kw.
Feeding width 124mm.
Cover width 60mm.
Yield stress 235Mpa(33KSI) ~ 345Mpa (50KSI).
Roll forming Speed 12 m/minute.
Cutting Tolerance ±2mm
Manual Uncoiler Max. Capacity: 5000kgs.
Voltage As per customer’s request.
Numbers of stands 11 stands/stations/pairs.
Roller material 45# steel polished and coated with chrome HRC55-60°
Shaft diameter 90mm
Shaft diameter high grade No.45 steel after treatment
Type of cutting Roll-formed and length-set profile cutting.




Type

bearing sliding type


Blade material Cr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision


Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type

Stacker


Type

Manual



Auto(option)


Length 1.5m-2m 6m or 12m

PLC


Main item Parameter detail
PLC

Delta(standard) or according to your request


Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase

Hydraulic pump


Main Item Parameter detail
Motor

3kw China brand or according to your request


Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan





Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
