Top Closed Type Steel Floor Deck Roll Forming Machine With High Performance

Large Image : Top Closed Type Steel Floor Deck Roll Forming Machine With High Performance

Product Details:

Place of Origin:	CHINA
Brand Name:	BEST
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD14000-28000
Delivery Time:	30 work days
Payment Terms:	L/C, T/T
Supply Ability:	20 sets/month

Contact Now

Top Closed Type Steel Floor Deck Roll Forming Machine With High Performance

Description

Thickness:	0.6-1.2mm Thickness	Feeding Width:	1250 Mm
Main Motor:	15 KW	Cutting Type:	Hydraulic Cutting Device
Roller Material:	45# Steel, Hard Chrome Coated	Cutting Blade Material:	Cr12
Highlight:	panel roll forming machine , cold roll forming machine

Top Closed Type Steel Deck Forming Machine , Metal Deck Roll Forming Machine

Quick Detail:

Thickness : 0.8-1.2mm
Material : GI Sheets, Normal Yield Strength
Coil Width : 1020mm
Effective Width: 600 3mm
Material Weight : 5tons, 6tons, 7tons, 8 Tons, 10tons
Coil Inner Diameter : 510mm+/-+30mm
Driven Way: By Driven Motor
Cutting Way: By Hydraulic Group
Cutting Tolerance : ±1mm

Machine List:

5Tons Hydraulic Un-Coiler
Roll Former
Hydraulic Cutting Device
Run Out Rack Or Automatic Stacking Device
PLC Control Systems

Description/Technical Parameter Details Of Complete Line:

5TX1250mm Hydraulic De-Coiler With/Without Coil Car

Expansion System By Hydraulic Group, Pump Motor: 3KW

Coil Inner-Diameter=510+/-30mm

Coil Width = Max.1250mm

Taper Wedge Expand Type

Load Capacity = Max. 5Tons

Driven Motor To Run The Coil, Motor: 3KW

Inverter Brand: TAIWAN Delta Brand

Roll Forming Machine With Cutting Details As Below Table :

Suitable Roll Forming Material	GI/Alu-Zinc Sheets
Thickness	0.8mm-1.2mm/1.5mm
Coil Input Width	1020mm
Carriage Frame Design	Wall-Plate-Frame-Design Wall Plate Thickness 18mm
Roll Forming Stations	26 Stages
Material Of Forming Roller	45# Steel, CNC Lathes, Hard Chrome Coated
Shafts Diameter	Φ95mm
Main Motor Power	15Kw×2 With Reducer Or Higher
Roll Forming Speed	12-15 M/Min As Standard Design
Hydraulic Group Power	5.5 Kw Or 7.5Kw
Material Of Cutting Blade	Cr12, Hear Treatment
Cutting Design	After Cut-Off, There Is Waste
Electric Voltage Standard	415V/50Hz/3PH Or As Per Request
Major Color Of Machine Painted	RAL 5015(Blue) Or As Requirements

PLC Control System

Siemens Brand PLC And Touch Screen, Schneider/ Shihlin/ Delta Brand Inverter, Omron Encoder

Cut-To-Length Tolerance≤±1mm

Control Voltage 24V

Schneider Brand Low Voltage Electric Elements

Profile Drawing/Layout/Equipment Reference Pictures:

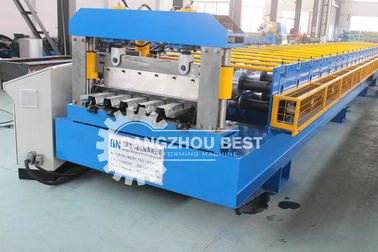

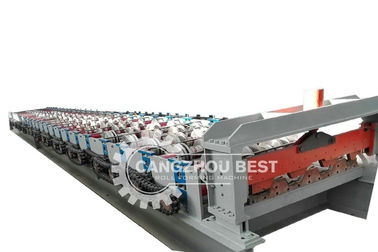

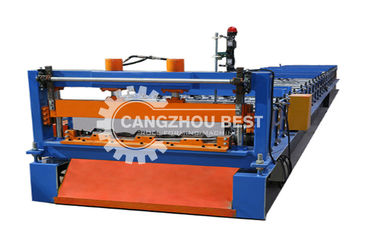

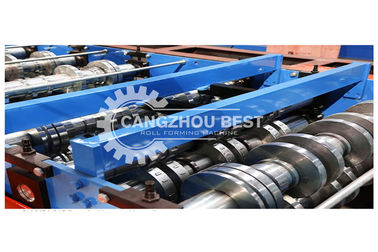

machine pictures
