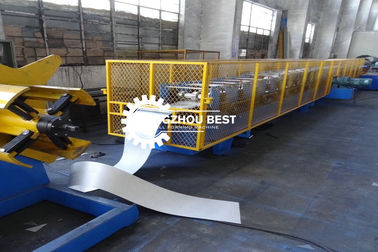

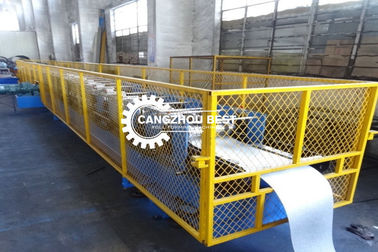

0.42mm Thickness Gutter Cold Roll Forming Machine With 5.5kw Power Full Automatic
Technical Date
| Coil Material |
Coil |
Galvanised steel sheet |
| Coil Thickness |
0.4-0.8mm |
| Coil Width |
depend on profile |
| Yield Strenth |
250-350Mpa |
| Decoiler |
Decoiler Type |
Manual(standard) or hydraulic type |
| Weight Capacity |
3T(standard), customized |

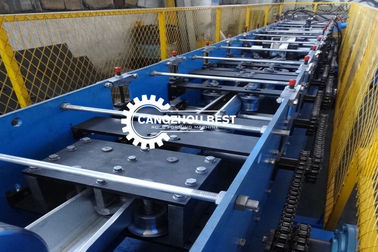

| Main Roll Forming |
Forming Station |
16 stations, depend on profiles |
| Roller Material |
High grade 45# steel, surface with hard chrome 0.05mm |
| Shaft Material |
High grade 45# steel, quenched |
| Shaft Diameter |
70mm |
| Drive Type |
Chain transmission |
| Forming Speed |
0-15m/min |
| Main Power |
7.5KW |

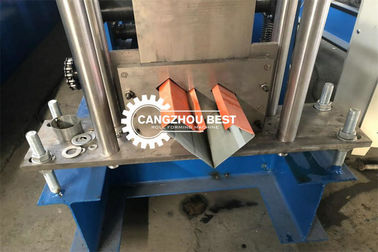

| Cutting Device |
Cutting Type |
Hydraulic cutting |
| Cutting Die Material |
Cr12Mov steel, HRC58-62 |
| Cutting Tolerance |
+/-1.5mm |
| Electrical System |
PLC Brand |
PANASONIC brand |
| Inverter Brand |
YASKAWA brand |
| Encoder |
OMRON brand |
| Touch Screen |
MCGS brand |
| Hydraulic System |
Hydraulic Station |
Famous Chinese Brand |
| Hydraulic Power |
4KW |
| Runout Table |
Table Type |
Simple non power type table |
| Function of Table |
To support the profile sheets after cutting |
Machine List
| 3 ton passive decoiler |
1 set |
| Main roll forming machine |
1 set |
| Control box |
1 unit |
| Hydraulic station |
1 unit |
| Out tables |
2 unit
|
Half Round Gutter Roll Forming Machine SURFACE TREATMENT
1) Processing material: steel strip
2) Material thickness: 0.3-0.7mm
3) Formed size on one machine: as per above profile drawing
4) Main motor power: 5.5kw
5) Hydraulic station power: 4kw
6) Productivity: 4-10m/min
7) Roller stations: 20 steps
8) Roller material: Cr12 steel with vacuum heat treatment, hardness reaches 58HRC-60HRC
9) Active shaft material: 45#steel with high frequency surface treatment and grinding process
10) Steel Gutter Roll Forming Machine Shaft diameter: Ф60mm
11) Cutting system: mould cutting, automatic cut to any length you need
12) Cutting blade material: Cr12MOV
13) Stand wall plate thickness: 22mm
14) Control system: Taiwan Delta PLC computer control system
15) Dimension of the machine: About 11000mm*1500mm*1400mm
16) Power supply: 380V, 3 Phase, 50Hz(or as per your request)
TECHNOLOGY
3t manual decoiler→guiding platform→main roll forming machine→cutting system→2m output table, 5.5kw electric-motors, 4kw electric motor on hydraulic station, PLC control system
SALES TERMS
1). Gutter Roll Forming Machine Price: Please contact us, we will try to give you good discount for starting our cooperation
2). Payment term: 30%TT should be paid as advance deposit, 70%TT before shipment
Or 100% LC at sight
3). Package: naked with simple plastic film and loaded in one 20-feet container
4). Delivery time: 50 working days after receipt of the deposit
5). Guarantee: 12 months. If any part of machine breaks, we will supply it for free.
6). After sales service
