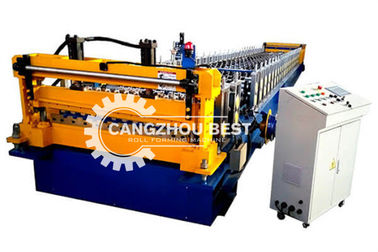

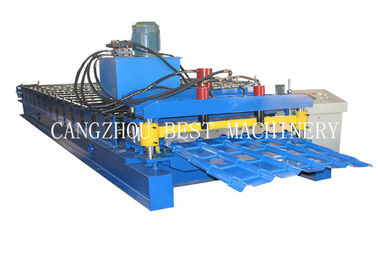

Product Details:
|
| Product Name: | Factory Produce Steel Coils Color Roofing Glazed Tile Roll Forming Machine | Color: | Blue Or As Your Requirement |
|---|---|---|---|
| Machine Dimention: | 6.5mx1.4mx1.4m | Machine Power: | 3kw+4kw |
| Warranty: | 2 Years | Control System: | PLC |
| High Light: | roof panel roll forming machine,steel roof tile forming machine |
||
| Type | Manual type(standard) |
| Width | 1250mm |
| Capacity | Max 5tons |
| Inner diameter | φ508-610mm |
| Outer diameter | φ1500mm |
roll forming
| Item | Parameter detail | ||||||||
| Processing Material | GI and PPGI | ||||||||
| Material thickness | 0.25-0.8mm | ||||||||
| Machine frame | 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision | ||||||||
| Machine siding panel |
|
||||||||
| Forming stations | 13-22 stations(according to the profiles) | ||||||||
| Machine rollers |
high grade No.45 forged steel,plated hard chroming with thickness 0.05mm |
||||||||
| Machine Shaft | φ70-80mm high garde No.45 steel after treatment, | ||||||||
| Machine spacers | CNC lathing in high-precision | ||||||||
| Machine bearings | China Haerbin bearing or SKF international bearing(option) | ||||||||
| Driving system | 1 inch chain or gear box(option) | ||||||||
| Machine power | 3kw-11kw(according to the profiles) | ||||||||
| Machine working speed | 8-12m/min or 10-30m/min(option) | ||||||||
| Machine adjust type | After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm |

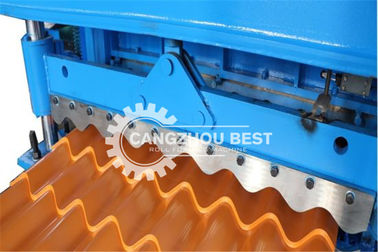

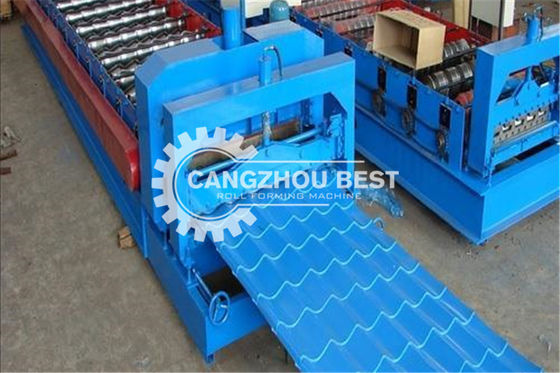

Pressing and cutting device
| Type |
bearing sliding type |
| Blade material | Cr12mov quenching and grinding |
| Frame processing |
the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the upper balde can not be straight. this is technology |
| Working | Hydraulic type |
Stacker
| Type |
Manual |
|
| Length | 1.5m-2m | 6m or 12m |
Hydraulic Pump
Oil type: 46# hydraulic oil
Pump brand: China brand
Output Table
No power type
Length: 2m
1.One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
1.We can make and design all kinds of roll forming machine according to customer's requests.
2.This is a very perfect and durable equipment. We have more than 20 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
