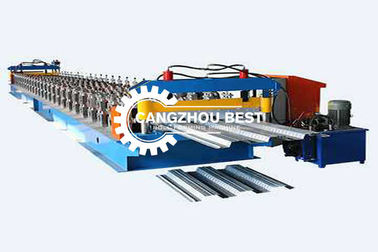

Lightweight Concrete 915mm Floor Deck Roll Forming Machine

Lightweight Concrete 915mm Floor Deck Roll Forming Machine
Lightweight Concrete 915mm Floor Deck Roll Forming Machine Lightweight Concrete 915mm Floor Deck Roll Forming Machine Lightweight Concrete 915mm Floor Deck Roll Forming Machine

Large Image :  Lightweight Concrete 915mm Floor Deck Roll Forming Machine

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: usd 18000---25000
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 20 sets//month

Lightweight Concrete 915mm Floor Deck Roll Forming Machine

Description
Voltage: 380V 50Hz 3phases Condition: New
Use: Roof And Wall Or Any Certification: CE/ISO9001
Warranty: 2 Year Haft Materia: 45# Steel With Quenched
High Light:

cold roll forming machine

,

sheet roll forming machine

Lightweight Concrete Forming Machine 915mm Floor Deck Roll Forming Machine



Place of Origin China
Business type manufacturer
lead time 60-90 days
Machine color customized
Certification CE report
Condition new
HS Code 84552210
Supply ability 15sets/Month
Packaging container
After-saler service engineer available to service machinery in oversea
PLC Panasonic
Operation type Touch screen
Hydraulic system pressure 12MPa
Hydraulic motor power 11.5kw
Main motor power 2*11kw
Shaft Material 75mm material is 45 # forge steel
Electric Source Customized
Roller stations 26 pairs
Dimension(L*W*H) Forming part 16m*1.8m*1.6m
Roll forming line Weight 10t
Dia of roller 90mm
Forming material thickness 0.7-1.2mm
Chain Size 1.5 inch
Material Knife cutting Cr12
Production speed 8-12m/min
Warranty 1 year



(1) 5T Hydraulic Un-coiler

  • Width of feeding: 1250mm
  • Capability: 5 Ton
  • Inter diameter: 470-520mm
  • Maximal out diameter: 1500mm
  • Coil placement in the coil holder: hydraulic hoist
  • Working speed: 0--20m/min adjustable
  • Main motor power: 5.5KW AC motor
  • Hydraulic power: 4kw

(2) Main Roll Forming Machine

  • Roller material: ASTM1045 chrome plated surface with hardness, CNC
  • Shaft diameter: ¢85mm material: SAE1045 with quenching and tempering
  • Main frame by 350H beam welding
  • Machine structure: wall board

(3) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,5.5KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product

(4) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization

Floor decking roll forming machine main parameters for your reference:
Floor deck forming machinery is for cutting floor boards CNC automatic machines, plate-type high-strength galvanized steel floor panels, large-span floor shop contained cement. It is PLC control, touch screen operation, easy to use.

Floor decking rolll forming machine
This is floor decking roll forming machine main parameter:





Main roll forming machine Size: about 7500х1650х1500



Weight: 4. 5 tons

Voltage: 380V/50HZ 3Phase or as your required
Roller fixer : middle plate

Frame : 350mm H beam steel welded

Drive mode: 1.0 inch single row chain
Material of rollers: 45# steel, surface hard chromium plating.

Diameter of shafts: φ85mm material is 45# forge steel

Number of rollers: 28 rollers station.

Main power: 15kw

Shearing system
Feature : Ensure stability, precision and cutting speedFunction : Automatic cutting controlled by PLC
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.



Material of blades: Cr12 quenched

Power supply : hydraulic power

Components: It contains one set of blade, one hydraulic tank and one cutter machine.

Hydraulic station It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.



Power:4kw 12 MPA

Hydraulic oil: 46#

Electric Control System





Feature:



1. Adopted PLC, frequency converter, Delta from Taiwan to ensure high speed with stability, precision and lifetime.

2. If you need, we can change it other brand or little computer type for touching screen.

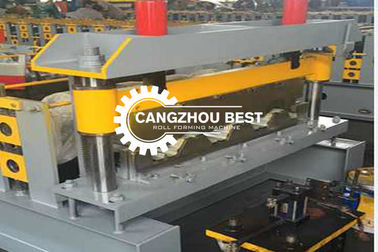

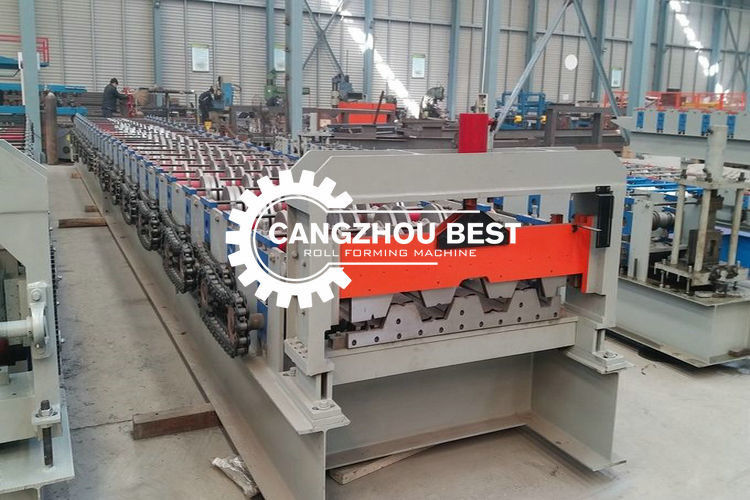

machine picture

Lightweight Concrete 915mm Floor Deck Roll Forming Machine 1Lightweight Concrete 915mm Floor Deck Roll Forming Machine 2
