Product Details:
|
| Product Name: | Square Steel Profile Soffit Panel DownSpout Water Tube Roll Forming Machine Rain Pipe | Color: | Blue Or As Your Request |
|---|---|---|---|
| Machine Power: | 5.5kw+3kw | Control System: | PLC |
| Warranty: | 2 Years | Life Time: | More Than 10 Years |
| High Light: | downspout roll forming machine,downspout machine |
||
| Components of Machine | ||||
| Decoiler (manual decoiler and hydraulic decoiler for option) | 1set | |||
| Feeding & guiding device | 1set | |||
| Main roll forming machine | 1set | |||
| Hydraulic cutting system | 1set | |||
| Controlling system | 1set | |||
| Run out table (auto. Stacker for option) | 1set | |||
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo | ||
| Width | 500mm | 600mm |
| Capacity | Max 5tons | From 5-15 tons |
| Inner diameter | φ450-550mm | φ450-550mm |
| Outer diameter | φ1500mm | φ1800mm |
| Type | Manual | Auto(option) |
| Length | 2 pieces | 6m or 12m |

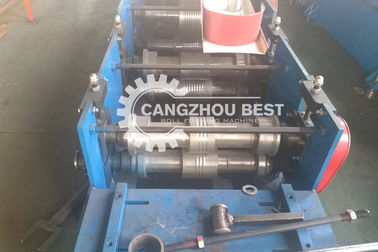

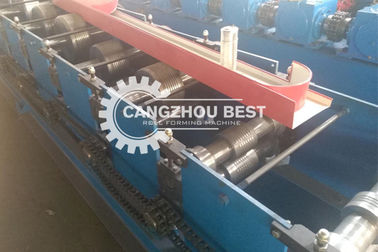

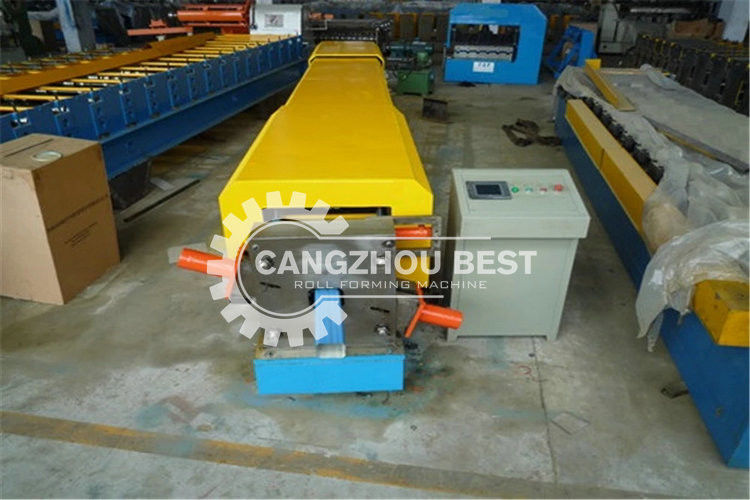

roll forming
| Item | Parameter detail | ||||||||
| Processing Material | GI and PPGI | ||||||||
| Material thickness | 0.25-0.8mm | ||||||||
| Machine frame | 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision | ||||||||
| Machine siding panel |
|
||||||||
| Forming stations | 16-22 stations(according to the profiles) | ||||||||
| Machine rollers |
high grade No.45 forged steel,plated hard chroming with thickness 0.05mm |
||||||||
| Machine Shaft | φ70-80mm high garde No.45 steel after treatment, | ||||||||
| Machine spacers | CNC lathing in high-precision | ||||||||
| Machine bearings | China Haerbin bearing or SKF international bearing(option) | ||||||||

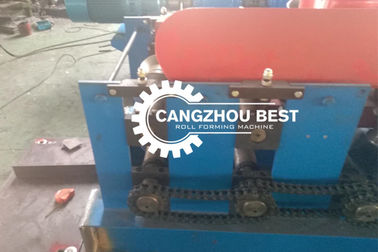

| Driving system | 1 inch chain or gear box(option) | ||||||||
| Machine power | 5.5kw-11kw(according to the profiles) | ||||||||
| Machine working speed | 8-12m/min or 10-30m/min(option) | ||||||||
| Machine adjust type | After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm |
Cutting
| Type |
Mould type |
| Blade material | Cr12mov quenching and grinding |
| Frame processing |
the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the upper balde can not be straight. this is technology |
| Working | Hydraulic type |
Hydraulic pump
| Main Item | Parameter detail |
| Motor |
3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system |
Cooling fan |
