Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V 50Hz 3phases |
|---|---|---|---|
| Condition: | New | Weight: | 5T |
| Use: | Other Shutter Door | ||
| High Light: | 0.6mm Shutter Door Forming Machine,235Mpa Shutter Door Forming Machine |
||

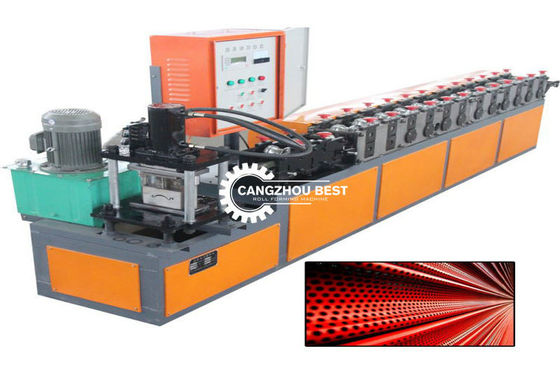

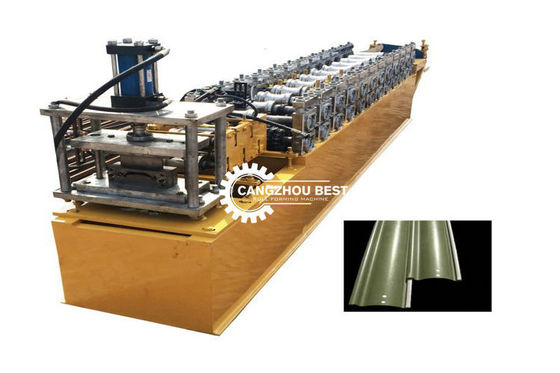

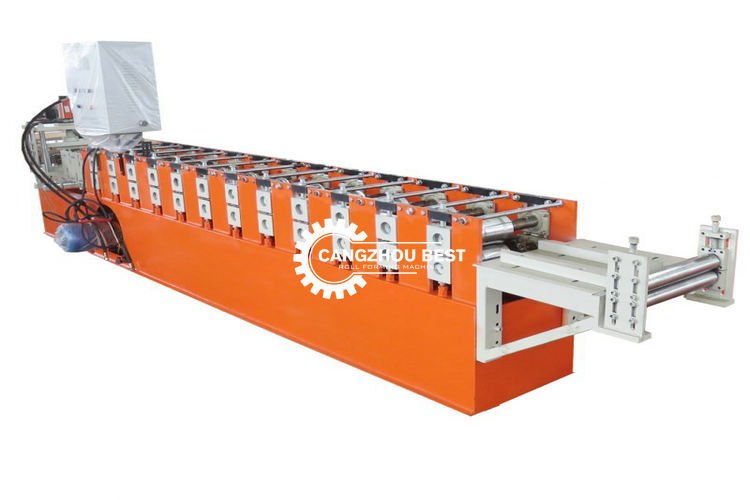

High Hydraulic Cut Shutter Door Roll Forming Machine Siemens PLC System Full Automatic
1. Description of door shutter roll forming machine:
For the rolling shutter strip making machine, it is a machine will make shutter door slats, Our machine can do thickness for 0.3-1.4mm, the shape will be designed by your demand.
LBM is manufacturing high-quality guardrail roll forming machines and regularly exported to Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.
2. Technical details of door shutter roll forming machine:
| Machine Specifications | |
| Weight | About 3500kgs |
| Size | About 6m x 1.6m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.3-0.6mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 12-14 |
| The diameter of forming rollers shafts | 60mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with a chromed treatment |
| Cutter material | CR12 mold steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 3kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of door shutter roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Receiving Table | 1 Set |
