Product Details:
|
| Tile Type: | Colored Glaze Steel | Voltage: | 380V 50Hz 3phases |
|---|---|---|---|
| Condition: | New | Weight: | 3.5T |
| Use: | Roof | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | concrete floor deck roll forming machine,3ph floor deck roll forming machine,1250mm floor deck forming machine |
||

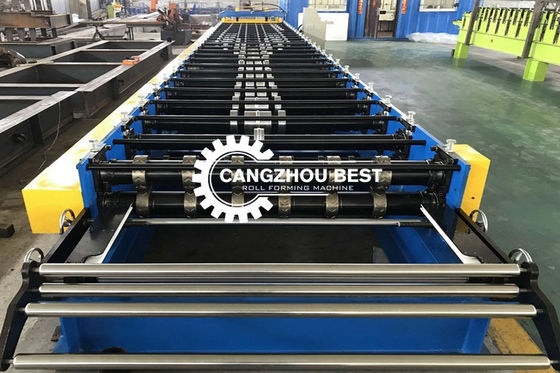

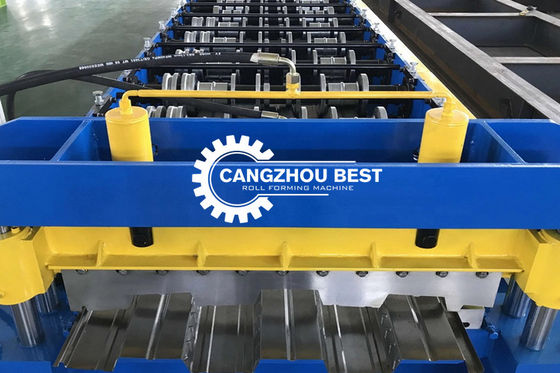

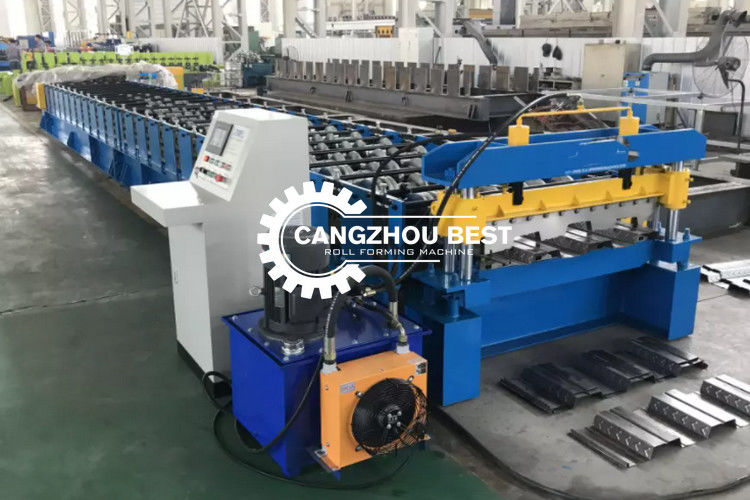

Galvanized Metal Decking floor sheet profile cold roll forming machine
Galvanized Metal Decking floor sheet profile cold roll forming machine is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling, continuous rolling and cold-forming, automatically cut to the size and specification which is required, and output the finished panels. The equipment adopts PLC control, AC frequency and adjusting the speed technology,
and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.
| NO. | Type | Specification |
| 1. | Raw material | PPGI&GI 0.3-0.8MM |
| 2. | De-coiler | Manual,6tons |
| 3. | Roller station | Acoording to our finall drawing |
| 4. | Diameter of shaft | According to our finall drawing |
| 5. | Material of rollers | 45#steel with 0.05mm Chrome |
| 6. | Material of Shaft | 45#steel with 0.05mm chrome |
| 7. | Driving way | Chain |
| 8. | Cutter type | Automatic hydraulic type |
| 9. | Blade Material | GCR12 steel |
| 10. | control system | PLC,Frequency converter,Counter ,Hydraulic type motor |
Technical Parameters
| No | Item | Parameter | Remark | |
| 1 |
Suitable
Material |
Type | Galvanzied steel | |
| Width(mm) | 1250 | According to customer's requirement | ||
| Thickness(mm) | 0.8-1.2 | According to customer's requirement | ||
| Yield Strength(Mpa) | 230-300 | According to customer's requirement | ||
| 2 | Forming Speed(m/min) | 20 | Not including cutting time | |
| 3 | Roller Material | No.45 steel | with hard chromized | |
| 4 | Cutting Model | Hydraulic Cutting | According to customer's requirement | |
| 5 | Power source | Type | 380V/3PH/50HZ | According to customer's requirement |
Machine Components
| No | Name | Quantity | Remarks | |
| 1 | Decoiler | 1set | Up to customer | |
| 2 | Main machine | Pre-cutting device | 1set | Up to customer |
| Feeding device | 1set | |||
| Roll forming system | 1set | There's base frame | ||
| Post cutting device | 1set | |||
| Hydraulic system | 1set | |||
| 3 | Electric control system | 1set | ||
| 4 | Supporter/Automatic Stacker | 1set | ||
| 1 | Name | Decking Roll Forming Machine Galvanized Truck Decking Floor Sheet roll formers floor plate making machine |
| 2 | Rollers | 30 Rows |
| Material: 45#H steel plate with chrome | ||
| 3 | Way of product | Sychronized pressing |
| 4 | Material | Machine body: 450mm H steel |
| Medium plate: 22mm steel | ||
| 5 | Axles | Material: 45#H steel |
| Diameter: Φ90mm | ||
| 9 | Power | 18.5kw+4kw |
| 6 | Hydraulic system | CDF-10 Gear pump |
| 7 | Control system | PLC computer control |
| 8 | Thickness of the plate | 0.5mm~1.2mm |
| 9 | Process precession | 1mm |
| 10 | Weight | About 14000kgs |
| 11 | Dimension | 14000*1500*1300mm |
| 12 | Production rate | 8m~12m/min |
| 13 | Feeding width | 1000mm |
| 14 | Effective width | 980mm |
| 15 | Cutting | Hydraulic type |
| Material : Cr12 |
