Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V 50Hz 3phases |
|---|---|---|---|
| Condition: | New | Weight: | Around 10.0 Tons (depend On Final Design) |
| Ile Type: | Colored Glaze Steel | Use: | Roof |
| High Light: | 10m/min floor deck roll forming machine,18.5kw floor deck roll forming machine,plc deck roll forming |
||

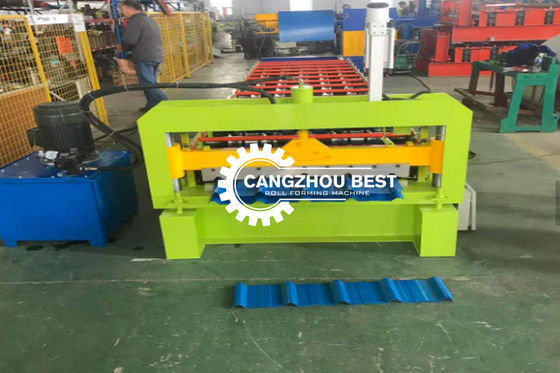

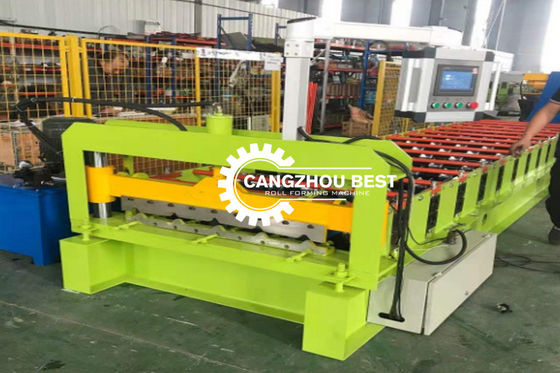

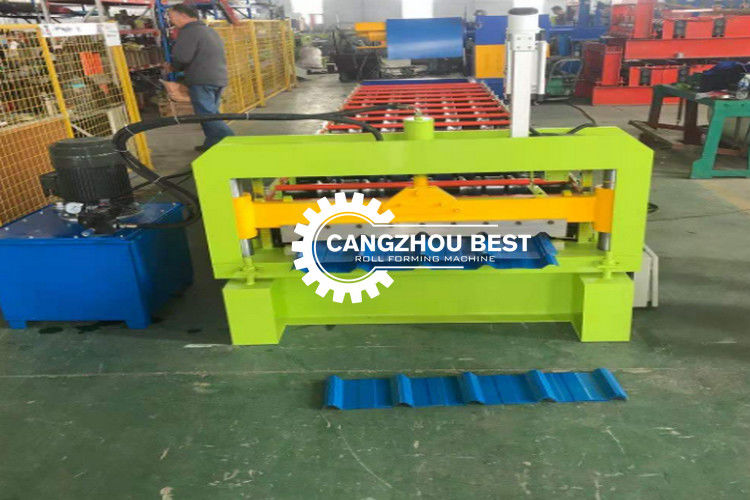

Floor Deck Roll Forming Machine
Model:688 Floor Deck
| Configurations | Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. |
| Control System | PLC Panasonic Inverter |
| Main Frame | 400mm H-Beam |
| Main Power | 18.5 kw |
| Pump Power | 7.5 kw |
| Power Supply | 380V, 3-Phase,50Hz |
| Forming Speed | 8-10m/min |
| Roll Station | 24 stands |
| Roller Diameter | 95mm |
| Hydraulic Pressure | 18-20MPa |
| Forming Size | 688mm |
| Feeding Thickness | 0.3-0.8mm |
| Feeding Width | 1000mm |
| Backboard Thickness | 22mm |
| Chain Size | 66mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall Size | 15000×1200×1100mm |
| Total Weight |
19T |
| Suitable Material | ||
| Material Width | 1000/1250mm | |
| Effective Width | 600/850mm | |
| Material Thickness | 0.8-1.5mm | |
| Material Type | Galvanized Steel Strip,Prepainted Galvanised Steel | |
| Yeild Strength | 245Mpa | |
| Main Machine | ||
| Size shaft diameter | 95mm | |
| Wall Panel Thickness | 18mm | |
| Base Specification | H446*199 | |
| Main Motor | 37KW hydraulic system | |
| Forming Speed | 0-10m /min | |
| Forming Station | 33 Stations | |
| Blade Material | Cr12(Die Steel) | |
| Roller Material | 45# steel,CNC lathes, Heat Treated,hard Chrome Coated | |
| Mode of Speed Regulation | AC Inverter Speed Regulation | |
| Driving Mode | Reduction Motor + Chain Transmission | |
| Cutting Mode | Hydraulic Type,Post-cutting | |
| Cutting Motor | Hydra station/hydraulic motor | |
| Measuring Mode | Photoelectric Encoder | |
| Control Mode | PLC | |
| Operation Mode | Button+Touch Screen | |
| Voltage | 380V or 415V/50Hz/3Ph or 220V/60Hz/3Ph | |
| Dimension | 15 M*1.5M*1.3M | |
| Machine Weight | 16500KG(15500KG) | |
