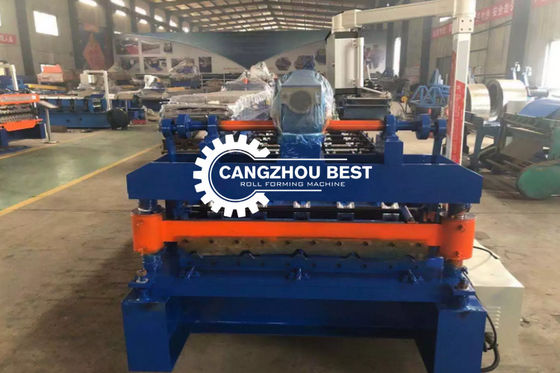

Product Details:
|
| Tile Type: | Colored Glaze Steel | Voltage: | 380V 50Hz 3phases |
|---|---|---|---|
| Condition: | New | Weight: | 6T Roof Sheet Roll Forming Machine |
| Use: | Roof/wall | Roof/wall: | Engineers Available To Service Machinery Oversea |
| High Light: | Glazed Tile roof panel machine,12m/min Roof Panel Roll Forming Machine,0.8mm Roof Panel Roll Forming Machine |
||
|
1
|
Rolling speed
|
8-12m/min
|
|
2
|
Rolling thickness
|
0.3mm-0.8mm
|
|
3
|
Dimension
|
6600*1500*1600
|
|
4
|
Effective width
|
900mm
|
|
5
|
Feeding coil width
|
1000 mm
|
|
6
|
Roller stations
|
About 15 stations
|
|
7
|
Roller material
|
45 # forge steel
|
|
8
|
Shaft diameter
|
Φ76mm
|
|
9
|
Transmission
|
By chain 1.2inch
|
|
10
|
Material of cutting
|
Cr 12 with quench HRC 65°
|
| ITEM | SPECIFICATION | |
| 1 | Raw Material |
Coil material ( Aluminum, Iron, stainless steel, galvanized sheet, brass strip) |
| 2 | Material Thinckness | 0.15mm-6mm |
| 3 | Coil Material Width | 8mm-1250mm |
| 4 | Capacity | 5m/ min-50m/ min |
| 5 | Products Length | No limit |
| 6 | Finished Product Dimension | As per customers’ drawing |
| 7 | Power | 380V/ 50Hz/ 15kw |
| 8 | Temperature | 0-40℃ |
| 9 | Humidity | 60-95% RH |
|
PRODUCT FEATURES |
|
1. Touch screen control equipment, easy to use 2. The surface finish of the production profile is good. The galvanized plate does not hurt the zinc, the color coat does not drop the paint, and the shape can be highly matched the design drawing at 1:1. 3. Mechanical equipment are sturdy and durable, less failure, and low maintenance costs. 4. Low waste rate of profile production, Save production cost. |
|
BRIEF INTRODUCTION |
|
This equipment is used for producing door frame, window rail support, storage rack, drawer slider, light steel keel, pipe,highway guardrail and so on. The whole production line consists of a material-putting rack, forming main machine and hydraulic set-length punching-cutting machine. Its shearing involves no waste,not producing shearing waste and saving the cost of material,with high production efficiency. |
| ITEM | SPECIFICATION | |
| 1 | Raw Material |
Coil material ( Aluminum, Iron, stainless steel, galvanized sheet, brass strip) |
| 2 | Material Thinckness | 0.15mm-6mm |
| 3 | Coil Material Width | 8mm-1250mm |
| 4 | Capacity | 5m/ min-50m/ min |
| 5 | Products Length | No limit |
| 6 | Finished Product Dimension | As per customers’ drawing |
| 7 | Power | 380V/ 50Hz/ 15kw |
| 8 | Temperature | 0-40℃ |
| 9 | Humidity | 60-95% RH |
|
PRODUCT FEATURES |
|
1. Touch screen control equipment, easy to use 2. The surface finish of the production profile is good. The galvanized plate does not hurt the zinc, the color coat does not drop the paint, and the shape can be highly matched the design drawing at 1:1. 3. Mechanical equipment are sturdy and durable, less failure, and low maintenance costs. 4. Low waste rate of profile production, Save production cost. |
|
BRIEF INTRODUCTION |
|
This equipment is used for producing door frame, window rail support, storage rack, drawer slider, light steel keel, pipe,highway guardrail and so on. The whole production line consists of a material-putting rack, forming main machine and hydraulic set-length punching-cutting machine. Its shearing involves no waste,not producing shearing waste and saving the cost of material,with high production efficiency. |
