Upright Beam Selective Storage 3.0mm Racking Roll Forming Machine

Upright Beam Selective Storage 3.0mm Racking Roll Forming Machine
Upright Beam Selective Storage 3.0mm Racking Roll Forming Machine Upright Beam Selective Storage 3.0mm Racking Roll Forming Machine

Large Image :  Upright Beam Selective Storage 3.0mm Racking Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-180
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD21500-USD25500/SET
Packaging Details: 20GP/40GP container
Delivery Time: 30-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20set/month

Upright Beam Selective Storage 3.0mm Racking Roll Forming Machine

Description
Name: Upright Beam Selective Storage Rack Shelves Rack Heavy Duty Machine Condition: New
Material: Galvanized Control System: PLC Control
Color: As Your Request Place Of Origin: Hebei, China
Cutting Mode: Hydraulic Type Drive System: Chain
Marketing Type: New Product 2020 Main Power: 15kw
High Light:

upright racking roll forming machine

,

upright rack roll forming machine

,

3.0mm racking roll forming machine

Upright Beam Selective Storage Rack Shelves Rack Heavy Duty Machine



1. Heavy duty warehouse storage pallet rack system

Selective racks are generally known as pallet racks and heavy duty racks. It is mainly used to store pallets and overweight items, usually cooperated with forklifts and telescopic pickers. When selecting heavy duty racks, the size and weight of the pallets and goods, as well as the number of stacked layers, must be considered to determine the appropriate column and beam materials and dimensions. The heavy beam type rack is assembled by columns, beams, cross braces, diagonal braces and self-locking bolts, which can effectively prevent the instability of the rack after the bolts are loose.



2. Machine component

1 Decoiler 1 set
2 Auto Punching Machine 1 Set
3 Main Rollforming Machine 1 set
4 Straightening System 1 set
5 Hydraulic Station 1 set
6 Auto-Cutting system 1 set
7 PLC Control System 1 set
8 Run Out Table 1 set



3. Main parameters:

The overall production line consists of decoiler, leveling device, servo following, punching press system, forming system , hydraulic cutting system , electric control system , out tables, etc.
Model number
Rack Roll Forming Machine
Material Thickness
1.5-3.0mm
Product speed
0-12meter / per minute
Roller Stations

  About 18 stations

Roller Material
Gcr15 Steel with quenching
Shaft Material
45# Advanced Steel (Diameter: 76mm), thermal refining
Material Of Cutting
CR12Mov with quench treatment
Electronic control
PLC control with touch screen
Weight
About 10 tons

Manual decoiler:

Coil inner Diameter: ¢460mm~520mm
Max out diameter of the coil: ¢800mm
Expansion: Manual with brake
Max Coil Width: 500mm

Leveling device

1) 7 rolls leveling, 3 rolls up and 4 rolls down
2) Diameter is Ø 80mm, chrome and HRC60 heat treatment to secure the smooth surface
3) Leveling Raw Material thickness:1.5-3.0mm
4) Max Leveling Raw Material width: 400mm

Punching Press machine
Series JH21-80T
Brand name: Yangli

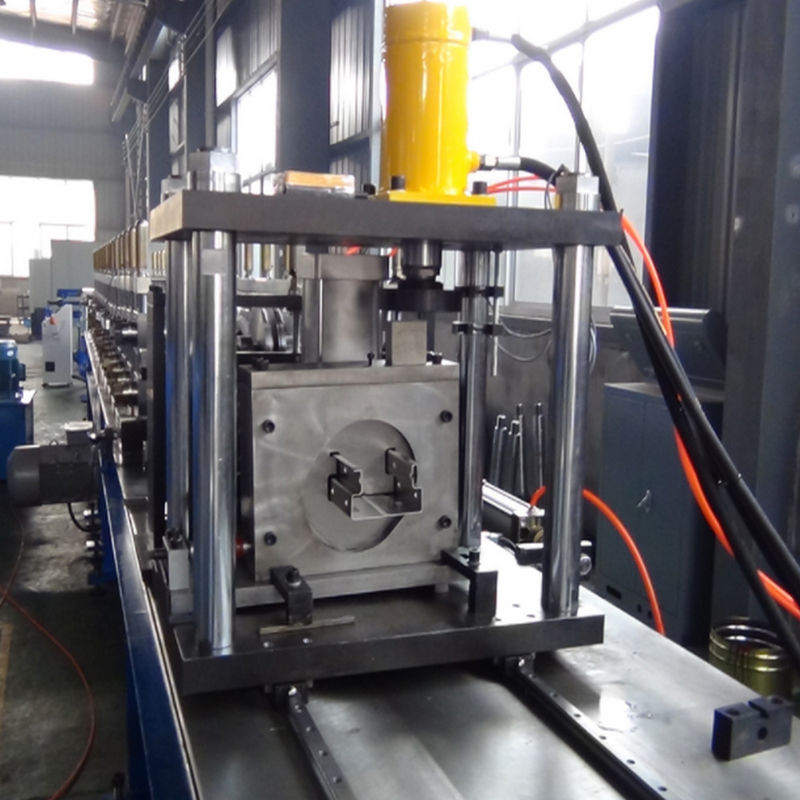

Hydraulic cutting

The cutter blade material: Cr12mov HRC58-62 degree
Blades number:1 set
Cutting after forming: Cut the sheet after roll forming to required length
Cutting motion: servo following cutting
Material of blade: CR12Mov with heat treatment
Length measuring: Automatic length measuring

Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)
Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.
Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese
Unit of length: millimeter (switched on the control panel)

It adopts welded steel and supported roller to transmit the products.

Size:4000*1350*1000mm



4. Terms of Sales

Qutation Type FOB, CFR, CIF, C&F
Payment Method 30% paid by T/T as deposit; 70% paid by T/T before the shipment
Delivery Time 60 working days
Warranty One year from complete production line and 10 years for rollers
Spare Parts Supply Free loaded toagether with the machine



5. Training and Installation

1) We offer installation service local in paid, reasonable charge.
2) QT test is welcome and professional.
3) manual and using guide is optional if no visiting and no installation.

Certification and after service
1) Match the technology standard, ISO producing certification
2) CE certification
3) 18 months warranty since the delivery. Board.

Our advantage:
1) Short delivery period.
2) Effective communication
3) Interface customized.



6. Our service

With the policy of client-oriented business at Tianyu Machinery Factory,We put highly emphasis on not only outstanding quality but also excellent and efficient after sales service with specialfocus on a wide range of roofing roll forming machines.In addition to installation,operation training, regular maintenance and spear parts provided, we will keep offering our best service even overdue the period of guarantee. Always we sincerely welcome suggestions and feedbacks from our customers regardless of good or even negative on comments so as to keep on improving and innovating our production line.Sticking to the principle to provide all clients with an excellent after sales service, we satisfy customers' needs in

compliance their requirements at all costs. Over the past 18 years, therefore, we have grown our business on roll formers gradually, which we believe firmly it's just the proven of our good performance on QC, after sales service and machines manufacturing.The more you learn about

us, the more you will understand that we are reliable and trustworthy. Just give a try to send your inquiry to us and you'll see!



7. After-sales service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
We supply one year guarantee for the machine. The parts of the roll forming machine are free to send you and
you will pay the cost of freight. And you can aslo solve it if you ordered more parts for your rol forming machine
We supply all life tech support of our roll forming machines, Any questions, please write mail to me.



FAQ:

Q: How is this machine's service life?
A:In the normal maintenance, the service life at least 8 years.

Q: How to maintenance?
A: If using frequently,best coating lubricant on the chain and two ends of the shaft every month,

replace the hydraulic oil every 1-2 years.

Q: What can you do if the machine broken?
A: Our machine's warranty period is 1 year,

if the broken parts can't repair, we can free send the new parts replace the broken parts to you except the solenoid valve, the solenoid valve you must pay the express cost yourself.

if after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.

Q: Can you be responsible for transport?
A: Yes, please tell me the destination port or address. we have rich experience in transport.

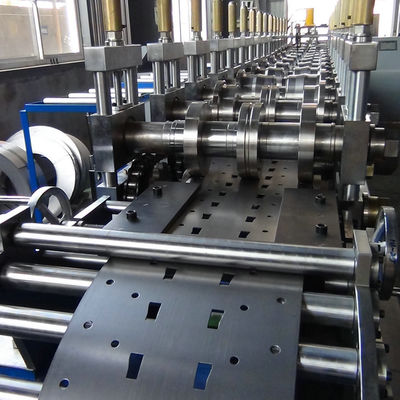

Upright Beam Selective Storage 3.0mm Racking Roll Forming Machine 0
