adopts welded steel frame structure, it make sure roof sheet machine can operation more stable
AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing,
hard plating, heat treatment and chrome coating.
|
Product Details:
|
| Product Name: | Color Steel Customzied Steel Profile Decking Floor Sheet Automatic Roll Forming Machine | Machine Dimention: | 11.5mx1.4mx1.4m |
|---|---|---|---|
| Machine Power: | 7.5kw | Driven System: | Chain Or Gear Box |
| Control System: | PLC | Cutting Type: | Hydraulic |
| Warranty: | 2 Years | ||
| High Light: | profile deck forming machine,color customized steel deck forming machine,7.5kw deck forming machine |
||

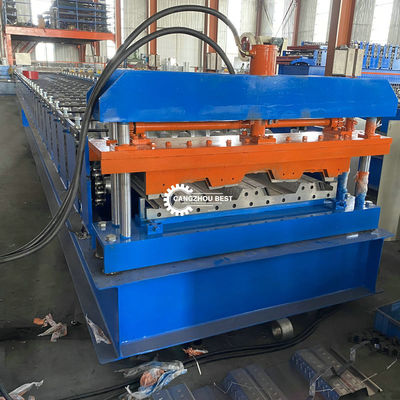

Color Steel Customzied Steel Profile Decking Floor Sheet Automatic Roll Forming Machine
Working flow
Decoiler----feeding----roll forming----pressing----cut to length----output table
Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Hydraulic Cutting Device | 1 Set |
| 4. | PLC Control Box | 1 Set |
| 5. | Hydraulic Pump | 1 Set |
| 6. | Output table | 1 Set |
Parameter
| Suitable Material | Material | GI, PPGI, PPGL |
| Width | 1200 mm | |
| Thickness | 0.8-1.2 mm | |

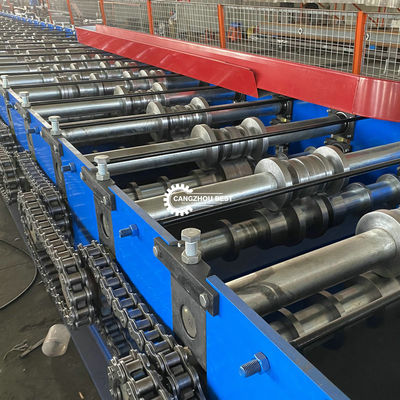

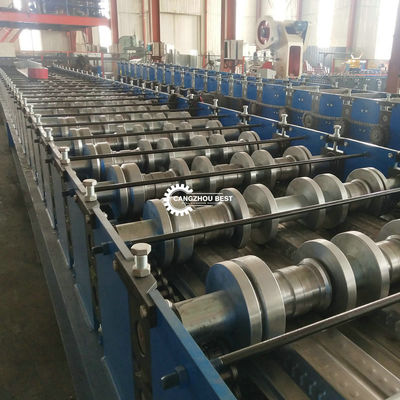

| Material of rollers | High grade 45# forged steel, surface hard chromium plating | |
| Rows of rollers | 28 stations | |
| Material of shafts | High grade 45# forged steel | |
| Diameter of shafts | 90mm | |
| Material of cutting blade | Cr12 Heat Treatment | |
| Speed | 8-10 m/min | |
| Side plate thickness | 20 mm | |
| Chain size | 2 inch | |
| Total power | 22 kw | |
| Voltage | 380V 50HZ 3Phase | |
| Appearance size (About) | 12000mm*1800mm*1700mm | |
| Weight(About) | 13 tons | |
| Length measurement | Encoder | |
| Control mode | Delta PLC | |
| Operating mode |
Button +Delta Touch screen |
|
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 40 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 50 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
