Supermarket Storage Shelf Plc Metal Roll Forming Machine For Panel

Supermarket Storage Shelf Plc Metal Roll Forming Machine For Panel
Supermarket Storage Shelf Plc Metal Roll Forming Machine For Panel Supermarket Storage Shelf Plc Metal Roll Forming Machine For Panel

Large Image :  Supermarket Storage Shelf Plc Metal Roll Forming Machine For Panel

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-180
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD21500-USD25500/SET
Packaging Details: 20GP/40GP container
Delivery Time: 30-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20set/month

Supermarket Storage Shelf Plc Metal Roll Forming Machine For Panel

Description
Name: Supermarket Storage Shelf Metal Plc Roll Forming Making Machine For Panel Material Width: 200-500mm
Material: Galvanized Control System: PLC Control
Color: As Your Request Way Of Drive: Chain Driven
Cutting Mode: Hydraulic Type Drive System: Chain
Material Of Cutting: Cr12Mov Hydraulic Station: 4KW
High Light:

plc metal roll forming machine

,

supermarket metal roll forming machine

,

storage shelf metal roll forming machine

Supermarket Storage Shelf Metal Plc Roll Forming Making Machine For Panel





1MACHINE FEATURES

Shelving equipment features:

1) The machine adopts PLC full-range intelligent control, and the automation program is high, safe and efficient.

2) The forming frame is welded using high strength channel steel. High strength and long service life.

3) The material of the roll shaft is 40Cr, and the hardness is HB280 after quenching and tempering treatment.

4) The material of the molding die is GCr15, quenching treatment, hardness: HRC 56-62 °C. 5. The transmission structure is gearbox transmission or chain transmission.



2. Machine component

1 Decoiler 1 set
2 Auto Punching Machine 1 Set
3 Main Rollforming Machine 1 set
4 Straightening System 1 set
5 Hydraulic Station 1 set
6 Auto-Cutting system 1 set
7 PLC Control System 1 set
8 Run Out Table 1 set



3. Main parameters:

Material
Thickness 0.3-0.8mm
Feeding width Max.700mm
Applicable material GI/PPGI/AL
Manual Un-coiler
Max Capacity 5 Ton
Features Manual with brake
Main Forming System
Motor Power 5.5 KW forming system
Roller material 45# steel , precision machined, mirror treatment, coatd with rigid chrom
Main forming shaft Φ70mm, 45# tempering steel
Frame 350H steel plate welding
Transmission by chain-and-gear
Measuring accuracy +/- 2 mm/M
Producing speed 4-12m/min
Working procedure decoilering--forming--moulding--cutting--product finished
Hydraulic Cutting Device
Cutting way Post cut, stop to cutting
Cutting material Cr12 with harded quenched and tempered, two piece of cutting blades
Motor power of Oil pump station 4 KW
Electrical System
Control system PLC controller(import brand)
Power 380V 50Hz (as per local requirement)
Extra
Dimesion(L*W*H) 5000mm*1000mm*1000mm
Weight(Ton) 3-5T
Service
After-sales Service Engineers available to service machinery overseas
Warranty 18 month



4. Terms of Sales

Qutation Type FOB, CFR, CIF, C&F
Payment Method 30% paid by T/T as deposit; 70% paid by T/T before the shipment
Delivery Time 60 working days
Warranty One year from complete production line and 10 years for rollers
Spare Parts Supply Free loaded toagether with the machine



5. Advantages of Our Machines

Advantage
1) Full range of products: we can provide all kind of roll forming equipment which can be used to forming all kinds of shape as you required. The company can make non-standard products for client's requirement.
2) Specialized: There are specialized technical personnel and a list of experienced team responsible for quality assurance. Here are technical and skilled specialists, senior foreign trade staff and engineers.
3) Advanced and practical: For example, wall/ roof panel roll forming equipment solves the problem of roof leakage that conventional machine can not be able to handle with.
And also, the forming machines are national inspection-exempted products after external supervision and sampling inspection.
4) Professional and on time service:
As to pre-sale service, the company provides sample version for free. Well, that which party bears freight charges is consultative.
As to sales service, our company offers sales discounts and allowances to customers for the vulnerable parts. There is about 3-month delivery cycle from the beginning of orders. Foreign delivery cycle is almost the same as domestic one.
As to after-sale, there is one-year warranty period. During the warranty period, machine maintenance and repair will be provided for free.
What's more, our company can offer OEM business and provide simple for free for customers with our roll forming equipment and slitting line, cut to length line.



6. What is your problems for roll forming machine?

1) Does one machine can only produce one size?
Not exactly, it depends on the machine.
2) Do you have after-sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
3) How to visit your company?
We can pick you up from Cangzhou Xi railway station
4) What can you do if the machine is broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the express cost by yourself. if after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
5) Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport.
6) You are a trade company or factory?
We are a Manufacturer.
7) Why your price is higher than others?
As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic, accurate, and high quality. We can make sure that our machine could use more than 20 years without any problem.
8) Do you have overseas engineers?
Yes, we not only provide overseas engineers but also provide technical training.
9) Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are a professional sheet metal forming machine designer and manufacturer.



7. After-sales service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
We supply one year guarantee for the machine. The parts of the roll forming machine are free to send you and
you will pay the cost of freight. And you can aslo solve it if you ordered more parts for your rol forming machine
We supply all life tech support of our roll forming machines, Any questions, please write mail to me.



What you need know:

1. Does one machine can only produce one style panel profile?

Not exactly. For wider and double layer making machine. It can produce more than kinds of panels.

2. Do you sell only standard machines?

No, most of our machines are built according to customers specifications, using top brand name components.

3. What can you do if the machine broken?

Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts,but you need pay the express cost yourself.if after warranty period,we can through consultation to solve the problems,and we supply the technical support for the whole life of the equipment.

4. How to visit your company?

a. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.

b. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.



Machine photos:

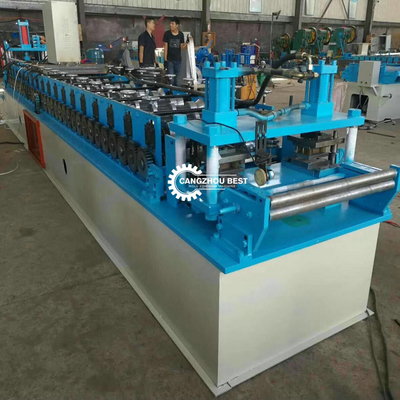

Supermarket Storage Shelf Plc Metal Roll Forming Machine For Panel 0

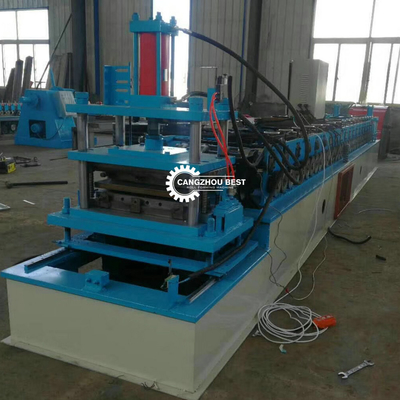

Supermarket Storage Shelf Plc Metal Roll Forming Machine For Panel 1
