Product Details:
|
| Name: | Galvanized 1.2mm Decking Floor Sheet Machine For Buikding Construction | Condition: | New |
|---|---|---|---|
| Voltage: | 380V 50Hz 3phases | Panel Thickness: | 20mm |
| Control System: | PLC Box | Place Of Orgin:: | Hebei,China |
| Roller Material: | Cr12 | Hydraulic Motor: | 22KW |
| Usage: | Building | Tile Type: | Galvanized |
| High Light: | galvanized floor deck forming machine,1.2mm floor deck forming machine,construction deck floor roll forming machine |
||

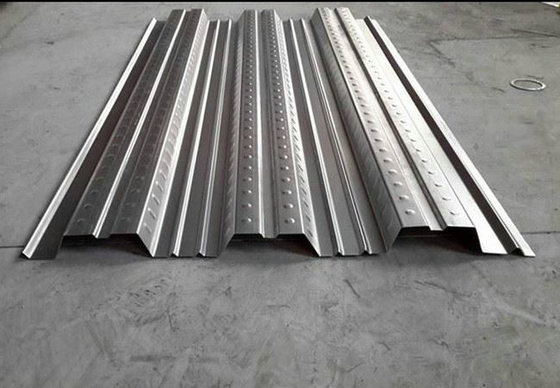

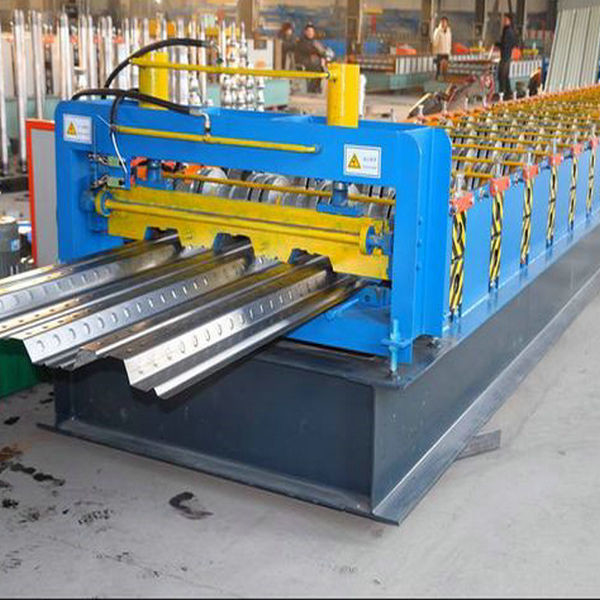

Steel Structure Metal Floor Deck Sheet Roll Forming Machine For Building Material
1) Material of the profile: GI or color steel
2) Thickness range: 0.3-0.8mm
3) Main motor power: 7.5kw, AC motor, motor inside of main machine (Brand: Guomao of China) (according the final design)
4) Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
5) Roll station: about 18 stations (according the final design)
6) Roller material: ASTM1045 chrome plated surface with chrome,CNC,
7) Shaft diameter: ￠70mm material: SAE1045 with quenching and tempering
8) Machine roll forming speed: not less than 15m/min
9) Transmission: by chain, one inch, single line
10) Roll former has leveling bolts in the base for adjust the leveling
11) Machine base frame adopt H beam welding steel
12) In the main roll forming machine have 2 buttons for urgency stop if happen any malfunction.
13) Machine adopt new station to make machine more strong
14) To avoid accidents,all of drive part adopt protect cover
15) Color of machine: Blue and yellow (or base on customer request)
| No. | Item | Specification | |
| 1 | Steel coil | Width |
Max 1250/1220/1219/1000 |
| Material | Ppgi/gi/gl/Alu-zinc | ||
| Thickness |
0.7-1.5mm 0.7-1.0mm 1-1.2mm
|
||
| Hardness | Normal hardness/G550/HRB90 | ||
| 2 | Forming | Frame | 450mm Height |
| Stations |
As design of drawing Main: 22-30 stations |
||
| Rollers |
High grade No 45# steel with hard 0.05mm chromed |
||
| Shaft | High grade No 45# steel | ||
| Diameter of shaft |
As design of drawing Main: 90mm |
||
| Chain | Main: 2inch | ||
| 3 | Control | PLC control | China/Taiwan/Japan/Germany brand |
| Main motor | Main: 2*18.5kw | ||
| Language | English or as your request | ||
| 4 | Cutting | Cutter | High grade Cr12 steel |
| Cutting system | Hydraulic | ||
| Hydraulic pump | Main: 3-5.5kw | ||
| Cutter frame | Steel plate welding | ||
| 5 | Decoiler | Manual | 6 Tons |
| 6 | Product | Receiving table | Manual |
|
We can also talk and confirm other details before ordering. We can give you suggestions.
Choose us, own professional service. |
|||
3. Specification of the raw material
| No | ||
| 1 | Suitable material | galvanized coil, |
| 2 |
Width of the raw material/ feeding width |
1000mm or customized |
| 3 | cover width/ effective width | 688mm or customized |
| 4 | Thickness | 0.5-1.2mm or customized |
4. Our Service:
| Payment terms | 30% T/T in advance and balance 70% after inspection confirmation before shipment. |
| Delivery | within 30 working days after receipt of deposit. |
| Packing | Nude packing with 1*40GPcontainer |
| Warranty | One year, and we will provide the technical support for the whole life. |
| Installation |
1.Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary. 2. Need one technician 3. Training time: one week (contains the time of installation and adjustment) |
5. Company Information:
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
