Product Details:
|
| Product Name: | Steel Unistruct C Channel Solar Rack Making Roll Forming Machine | Machine Speed: | 8-10m/min |
|---|---|---|---|
| Driven System: | Chain Or Gear Box | Control System: | PLC |
| Cutting Type: | Hydraulic | Warranty: | 2 Years |
| Life Time: | More Than 10 Years | ||
| High Light: | unistrut c channel roll forming machine,gearbox c channel roll forming machine,solar rack roll forming machine |
||
Steel Unistruct C Channel Solar Rack Making Roll Forming Machine
Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table
Machine Component
Hydraulic De-coiler-----------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
Punching machine-------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Hydraulic punching device---------------------1set
Production support table-----------------------1set
Machine Specifications
| Part details | Item Name | Specification |
| Material | Raw material | Galvanized steel |
| Thickness | 1.5-3 mm | |
| Puncher | Weight capacity | 40 T |
| Machine | Roller station | 18 |
| Shaft diameter | 65 mm | |
| Shaft material | 45# steel with 0.05mm chrome | |
| Roller material hardness 30-40 HRC | 45# steel with 0.05mm chrome | |
| Machine size | About 8.5×0.8×1 m | |
| Machine weight | About 4.5 ton | |
| Machine color | As customer' request | |
| Working speed | 10-20 m/min | |
| Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1 mm | |
| Material | Cr 12 | |
| Operate | Hydraulic cutting | |
| Power | Driving way | Chain 1 inch |
| Main power | 7.5 kw | |
| Pump power | 4 kw | |
| Voltage |
380v/50HZ,3P or customize as customer' request |
|
| Control system | PLC brand | Delta made in Twaiwan |
| Screen | Touchable screen | |
| Language | Chinese and English or add language as customer need | |
| Decoiler | Operation | Manual |
| Weight capicatity | 3 ton | |
| Price | Free as gift | |
| Receiving table | Operation | Manual |
| Length | 3 m |
Installation and training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting,we will send you user manual and CD to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.

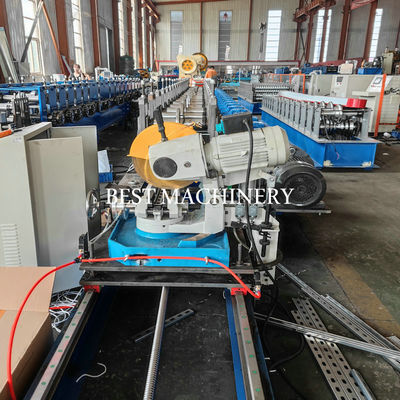

Machine Photos
