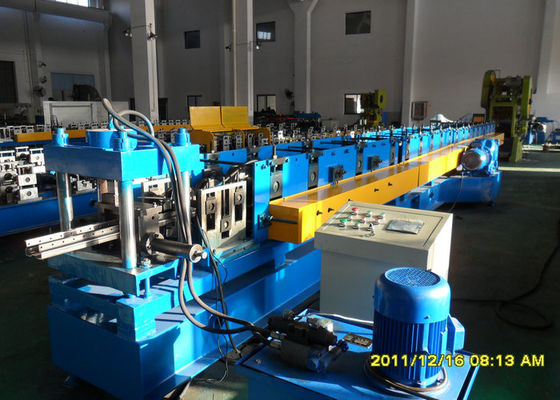

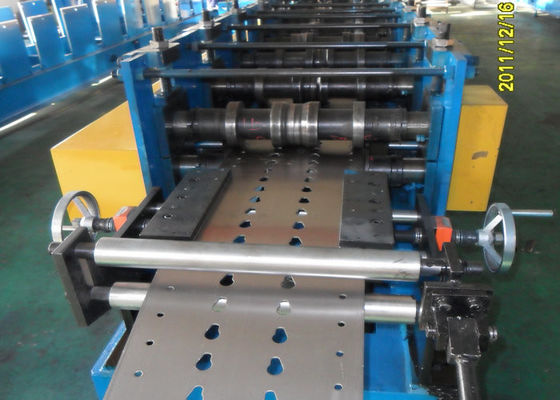

Upright Rack Beam Box Steel Roll Forming Machine Production Line

Upright Rack Beam Box Steel Roll Forming Machine Production Line
Upright Rack Beam Box Steel Roll Forming Machine Production Line Upright Rack Beam Box Steel Roll Forming Machine Production Line Upright Rack Beam Box Steel Roll Forming Machine Production Line Upright Rack Beam Box Steel Roll Forming Machine Production Line

Large Image :  Upright Rack Beam Box Steel Roll Forming Machine Production Line

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY90-120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 50-60 days
Supply Ability: 10sets/month

Upright Rack Beam Box Steel Roll Forming Machine Production Line

Description
Product Name: Steel Upright Rack Beam Box Roll Forming Machine Production Line Color: Blue Or As Your Request
Machine Speed: 8-10m/min Machine Dimention: 9mx1.5mx1.5m
Machine Power: 11kw+3kw Driven System: Chain Or Gear Box
Control System: PLC Cutting Type: Hydraulic
Warranty: 2 Years Life Time: More Than 10 Years
High Light:

sheet metal roll forming machines

,

steel roll forming machine

Upright Rack Beam Box Steel Roll Forming Machine Production Line





Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table

Machine Component

De-coiler 1 set
Leveling device 1 set
Forming machine 1 set
Punching device 1 set
Cutting device 1 set
PLC control box 1 set
Hydraulic pump station 1 set
Production support table 1 se



Decoiler


Type Manual type(standard) Hydraulic type(option)
Width 600mm 800mm
Capacity 5000kgs 5000kgs-15000kgs
Inner diameter 450-550mm 450-550mm
Outter dimater 1500mm 1800mm


roll forming machine


Item Parameter detail
Processing Material GI and Black Coils
Material thickness 1.5-3mm(standard), 2-4mm(customized)
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
Plate type Casting Pillar type(option)

Plate thickness:20mm Pillar thickness:35mm



Forming stations 14-18 stations (according to the material thickness)
Machine rollers

high grade Gcr15 forged steel(bearing material), Hard quenching and hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

Machine Shaft φ80-100mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision and wire-electrode cutting
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 2 inch chain or gear box(option)
Machine power 11kw-15kw(according to the size and thickness)
Machine working speed without punching:8-12m/min or 10-30m/min(option)
Machine testing method After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm


Punching device


Item Parameter detail
Frame processing the whole levelling surface is made by drilling machine
Mould material Cr12mov
Mould processing wire eletrode-cutting for the mould shape, it will save pressure
Hole size According to your request
Hole number According to your request
Pressure 20Mpa


Cutting device


Type

Mould cutting


Blade material Cr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision

Blade processing wire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology
Working Hydraulic type


Stacker


Type

Manual


Auto(option)


Length 2pieces, length is adjustable according to your requirement

PLC


Main item Parameter detail
PLC

Delta(standard) or according to your request


Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase

Hydraulic pump


Main Item Parameter detail
Motor

3kw China brand or according to your request


Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan
